CHIEFTEC zdroj SFX CSN-650C 650W, 80+ Gold,full range, cable management
Popis
Parametry
Hlídací pes

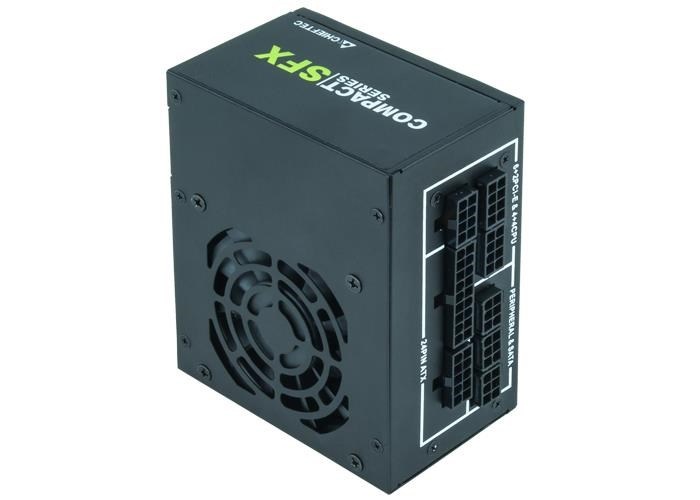

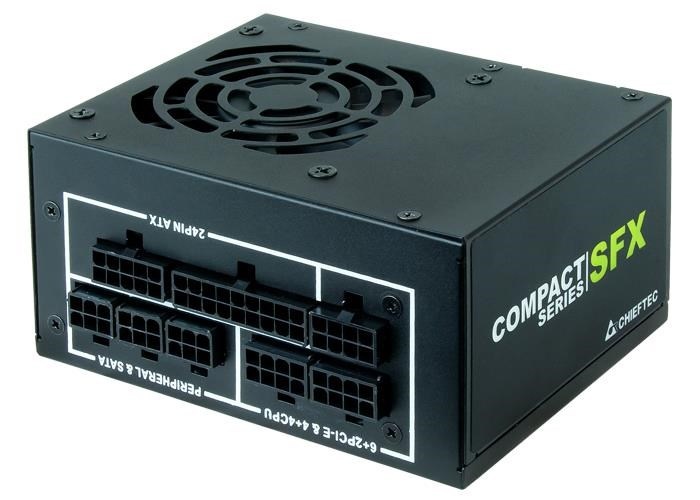

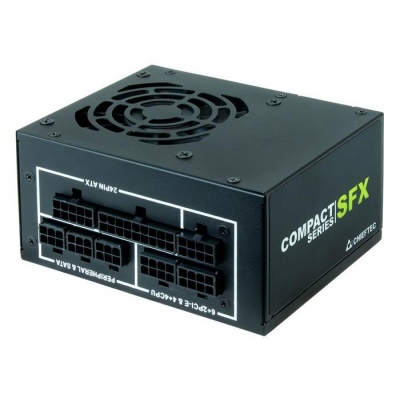

This small SFX PSU surprises with massive power and an incredible power output of 650 watts. You won’t have unnecessary cables anymore as it comes with a cable managment and 80plus gold certification. The 80mm Ultra Silent fan is perfect to cool down the power supply.
SPECIFICATIONS:
Performance
| AC Input: | 100V-240V / 6A |
| Frequency: | 47-63 Hz |
| +5V: | 15A |
| +3,3V: | 18A |
| +5V & +3,3V combined: | 90W |
| +12V 1: | 54A |
| +12V 2: | N/A |
| +12V 1 & +12V 2 combined: | N/A |
| +12V 3: | N/A |
| +12V 4: | N/A |
| +12V 3 & +12V 4 combined: | N/A |
| P.F.: | >0,9 |
| -12V: | 0,3A |
| +5VSB: | 3,0A |
| Maximum Load: | 650W |

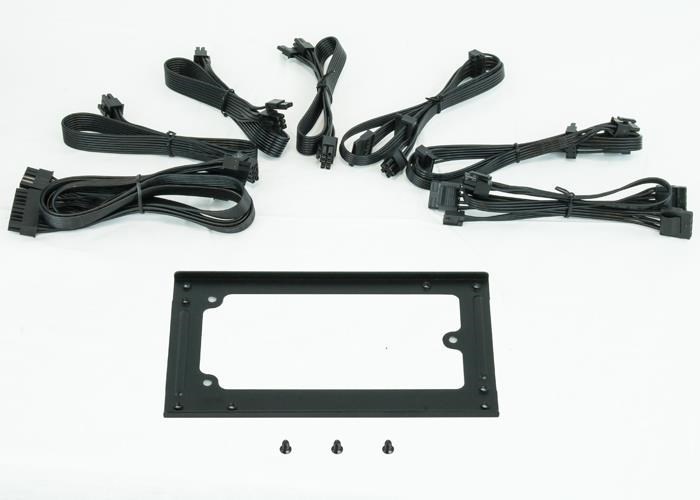

Modular cable
| 20+4PIN ATX: | 1 |
| SATA: | 4 |
| MOLEX: | 3 |
| Floppy: | 1 |
| 4PIN 12V: | - |
| 8PIN 12V: | - |
| 8PIN (4+4) 12V: | 1 |
| 6PIN PCIe: | - |
| 8PIN (6+2) PCIe: | 2 |
Features
| Spezification: | ATX 12V 2.3 |
| Form factor: | SFX |
| Efficiency: | > 90% |
| Dimension (DxWxH): | 100 mm x 125 mm x 64 mm |
| PFC: | Active PFC (0,9) |
| Fan: | 80mm silent fan |
| Security: |
|
| Warranty: | 24 Month |
Formát zdroje:
SFX
Konektory:
PCIe 8-pin
Konektory:
FDD
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
EPS 8-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
650
Aktuální cena produktu je2870Kč
s dph
