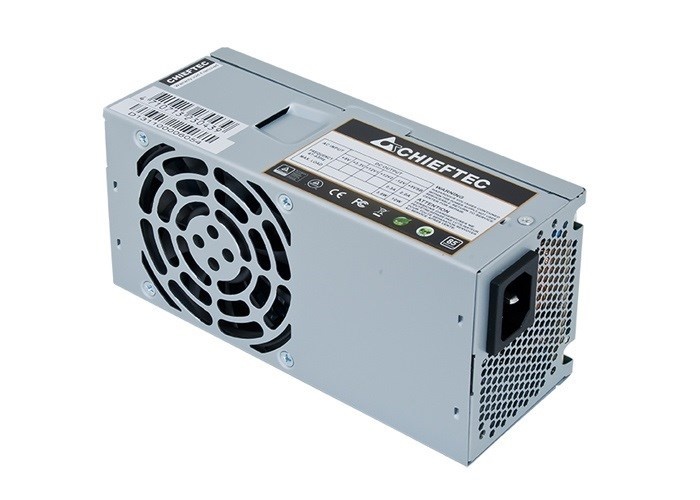

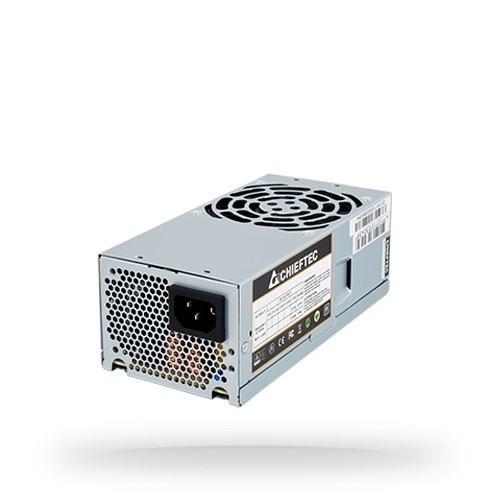

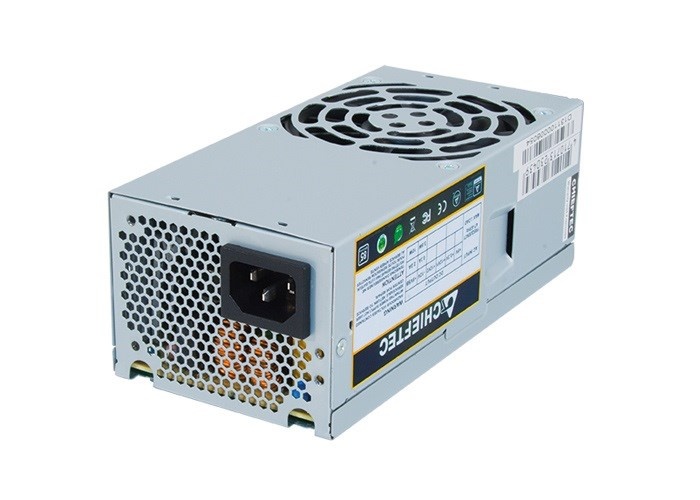

CHIEFTEC zdroj TFX GPF-350P, 350W, ATX-12V V.2.3, PFC, full range

Performance

AC Input:

115V - 230V | 6,3A

Frequency:

47 - 63Hz

+5V:

16A

+3,3V:

16A

+5V & +3,3V combined:

100W

+12V 1:

15A

+12V 2:

15A

+12V 1 & +12V 2 combined:

300W

+12V 3:

N/A

+12V 4:

N/A

+12V 3 & +12V 4 combined:

N/A

P.F.:

>0,9

-12V:

0,3A / 3,6W

+5VSB:

2A / 10W

Maximum Load:

350W

Native cable

20+4PIN ATX:

1

SATA:

2

MOLEX:

2

Floppy:

-

4PIN 12V:

1

8PIN 12V:

-

8PIN (4+4) 12V:

-

6PIN PCIe:

-

8PIN (6+2) PCIe:

-

Features

Spezification:

ATX 12V 2.3

Form factor:

TFX

Efficiency:

> 85%

Dimension (DxWxH):

175 mm x 86 mm x 65 mm

PFC:

Active PFC (0,9)

Fan:

80mm silent fan

Security:

UVP (Undervoltage protection)

OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

AFC (Automatic Fanspeed Control)

Warranty:

24 Month
