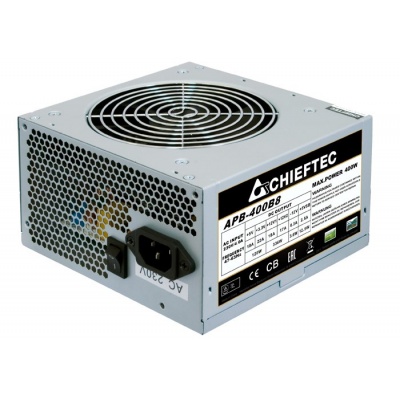

CHIEFTEC zdroj Value, APB-400B8, 400W, ATX-12V V.2.3 , PS-2 type with 12cm Fan, Active PFC, 230V

Performance

AC Input:

230V / 4A

Frequency:

50 Hz

+5V:

18A

+3,3V:

22A

+5V & +3,3V combined:

120W

+12V 1:

18A

+12V 2:

17A

+12V 1 & +12V 2 combined:

336W

+12V 3:

N/A

+12V 4:

N/A

+12V 3 & +12V 4 combined:

N/A

P.F.:

>0,9

-12V:

0,3A / 3,6W

+5VSB:

2,5A / 12,5W

Maximum Load:

400W

Native cable

20+4PIN ATX:

1

SATA:

3

MOLEX:

2

Floppy:

1

4PIN 12V:

1

8PIN 12V:

-

8PIN (4+4) 12V:

-

6PIN PCIe:

-

8PIN (6+2) PCIe:

1

Features

Spezification:

ATX 12V 2.3

Form factor:

PS II

Efficiency:

<80%

Dimension (DxWxH):

140 mm x 150 mm x 87 mm

PFC:

Active PFC (0,9)

Fan:

120mm silent fan

Security:

UVP (Undervoltage protection)

OVP (Overvoltage protection)

SCP (Short-circuit protection)

OPP (Overload protection)

AFC (Automatic Fanspeed Control)

Warranty:

24 Month
