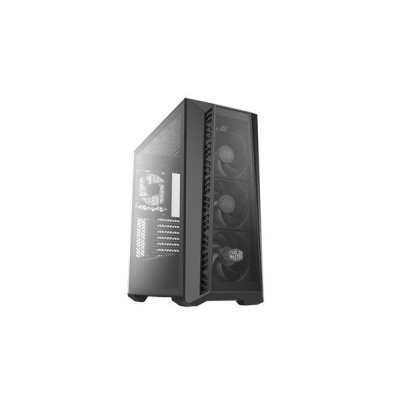

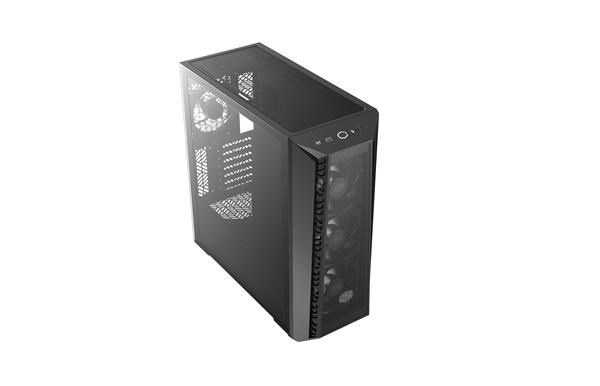

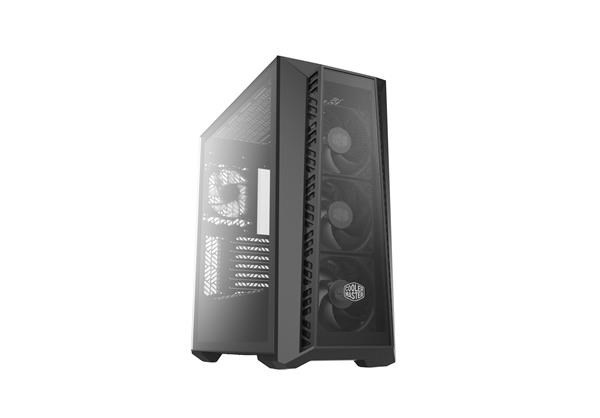

Cooler Master case MasterBox 520 Mesh Blackout Edition, E-ATX, bez zdroje, průhledná bočnice
Popis
Parametry
Hlídací pes
Masterbox 520 Mesh Blackout Edition
MasterBox 520 Mesh Blackout Edition is the ideal chassis for both novice and experienced gamers alike, providing users multiple options in case design to satisfy different needs. Whether you place utmost value on system performance and high-quality gaming experiences, or sleek aesthetics and an outlook that stands out, MasterBox 520 Mesh Blackout Edition has something for you. Pre-installed with three 120mm SickleFlow fans, the MasterBox 520 Mesh Blackout Edition ensure systems installed runs cool and smoothly regardless of hardware choice. Additional mechanical upgrades such as a removable top panel and robust dust filter ensure a pleasant, hassle-free installation experience.

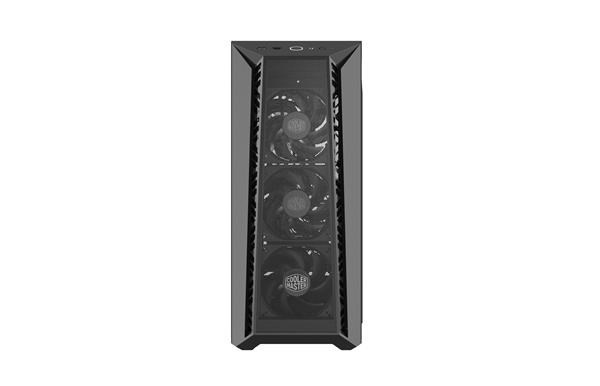

- FineMesh Performance Front Panel – Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
- Three 120mm SickleFlow Fans Included – Pre-installed 120mm SickleFlow fans provide supeior airflow, ensuring low temperatures and high performance even the most intense gaming sessions.
- Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.

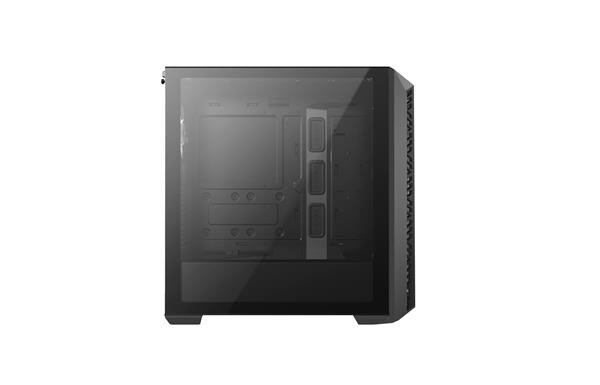

- Screwless & Tool-Free TG Side Panel – The tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
- Versatile Cooling Options – Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.

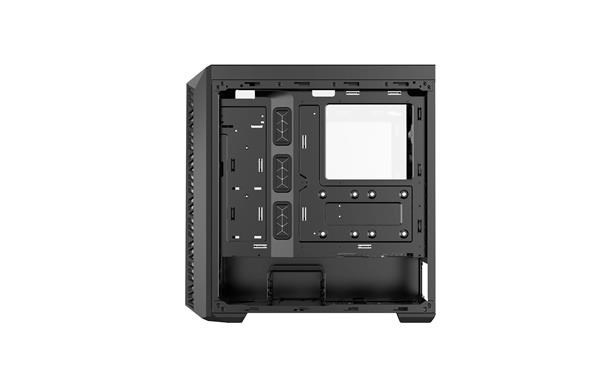

- Removable HDD cage – The HDD cage is completely removable for improved access during assembly and system upgrades.
- Upgraded Removable Dust Filter Bracket – The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
TECHNICAL SPECIFICATIONS
Exterior Color | Black |
Materials | Exterior - Steel, ABS Plastic, Tempered Glass Left Side Panel - Tempered Glass |
Dimensions (L x W x H) | incl. Protrusions - 502x 210 x 498mm Body size¨ - 443x 210 x 498mm |
Volume | 50L |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12” x 10.7” motherboards, may impact cable management feature) |
Expansion Slots | 7 |
Drive Bays | 5.25“ ODD - 0 3.5” HDD - 2 2.5” SSD - 3 |
I/O Panel | USB Ports - 1 x USB 3.2 Gen1 Type-A + 1x USB 3.2 Gen2 Type-C Audio In / Out - 1x 3.5mm Headset Jack (Audio + Mic) Others - 1x RESET |
Included Accessories | 1 to 3 fan cable |
Included Fan(s) | Top - N/A Front - 3x Sickle flow PWM non-LED fan Rear - 1x MasterFan lite 120mm non-LED fan |
Fan Support | Top - 3 x 120mm / 2 x 140mm Front - 3 x 120mm / 2 x 140mm Rear - 1 x 120mm |
Radiator Support | Top - 120/140/240/280/360mm (recommended maximum thickness - 55mm) Front - 120/140/240/280/360mm Rear - 120mm |
Clearances | CPU Cooler - 165mm / 6.49” Power Supply - 200mm (Recommended up to 170mm) Graphics Card - 410mm / 16.10” |
Dust Filters | Bottom, Front, Top |
Power Supply Support | ATX |
.
Provedení skříně:
Midi Tower
Počet pozic 3.5" (HDD):
2
Počet pozic 2.5" (SSD):
3
Vybavení PC skříně:
Průhledná bočnice
Vybavení PC skříně:
Bez integrovaného zdroje
Vybavení PC skříně:
Přední Audio panel
Vybavení PC skříně:
Přední USB panel
Aktuální cena produktu je2848Kč
s dph
