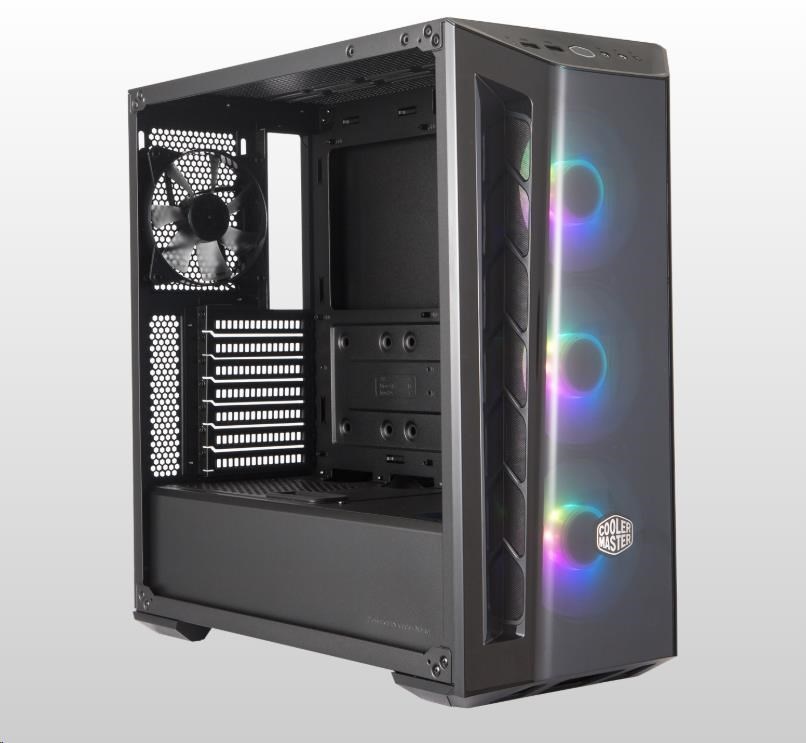

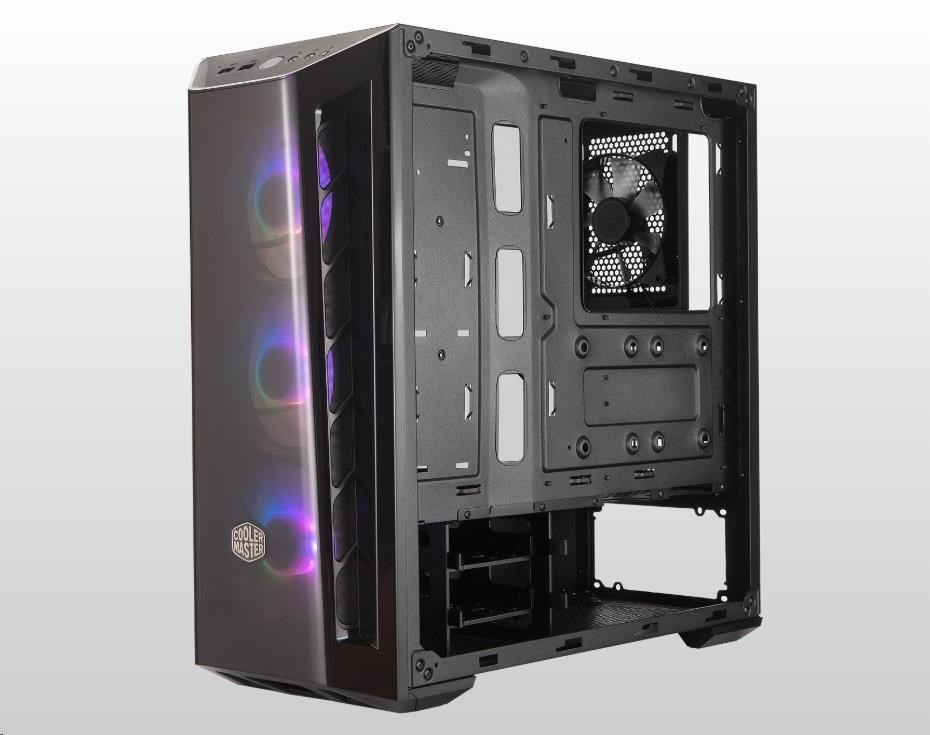

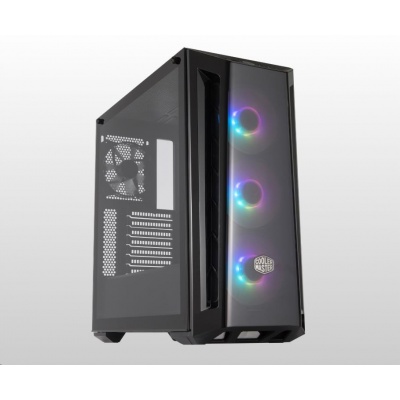

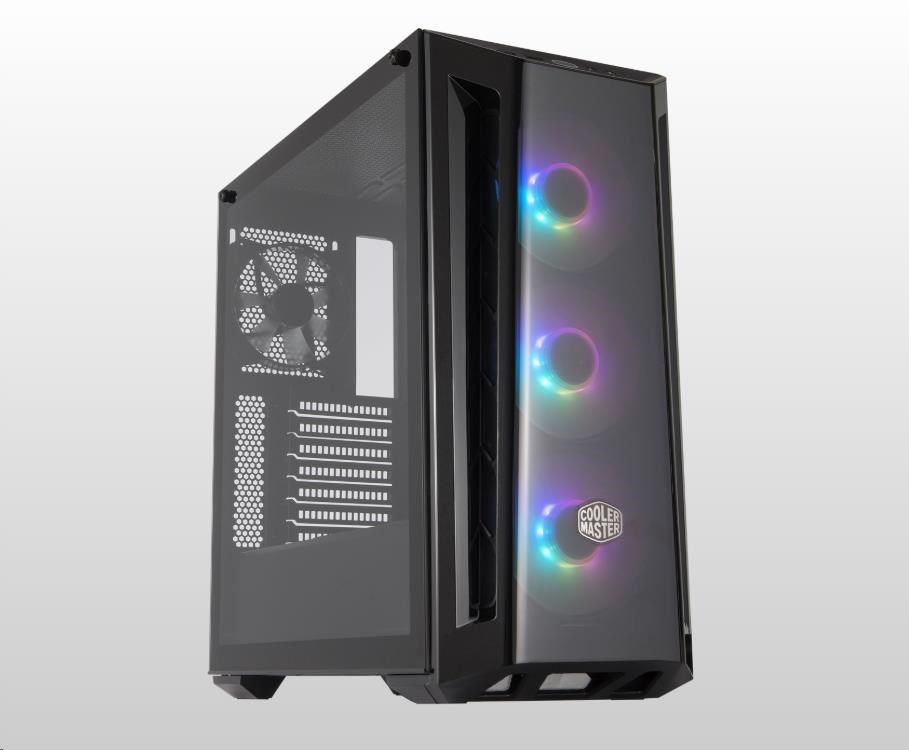

Cooler Master case MasterBox MB520 aRGB, E-ATX, Mid Tower, černá, bez zdroje
MASTERBOX MB520 ARGB
- DarkMirror Front Panel
- Mesh Intakes
- ARGB Lighting System
- Tempered Glass Side Panel

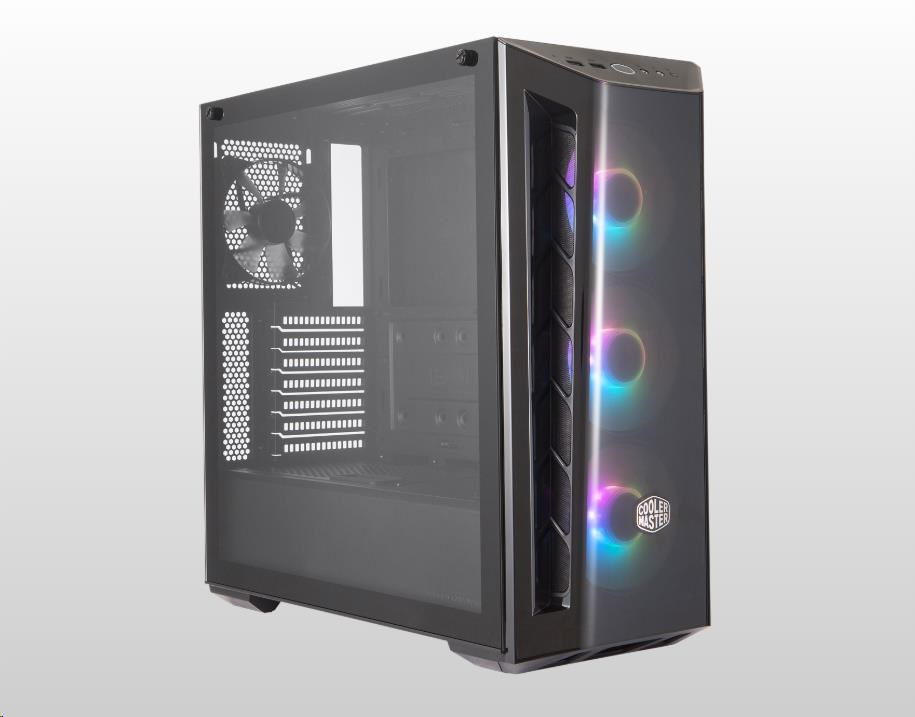

A LOOK THROUGH THE DARKMIRROR
Showing off your rig through a smoked front panel is something you didn’t know you needed. The DarkMirror front panel enriches the contrast from hardware lighting, creating a picturesque display of the internal components. To cool gaming systems built inside, mesh ventilation is found on the entire length of the front panel’s sides, ensuring that the three included ARGB fans are fed with a considerable amount of air.
If you’re thinking about thermal upgrades, the MasterBox MB520 ARGB supports up to seven fans and front and rear liquid cooling for high-demand builds. Paired with a tempered glass side panel and additional top ventilation, your build can look, and play, exactly as you dreamed it would.

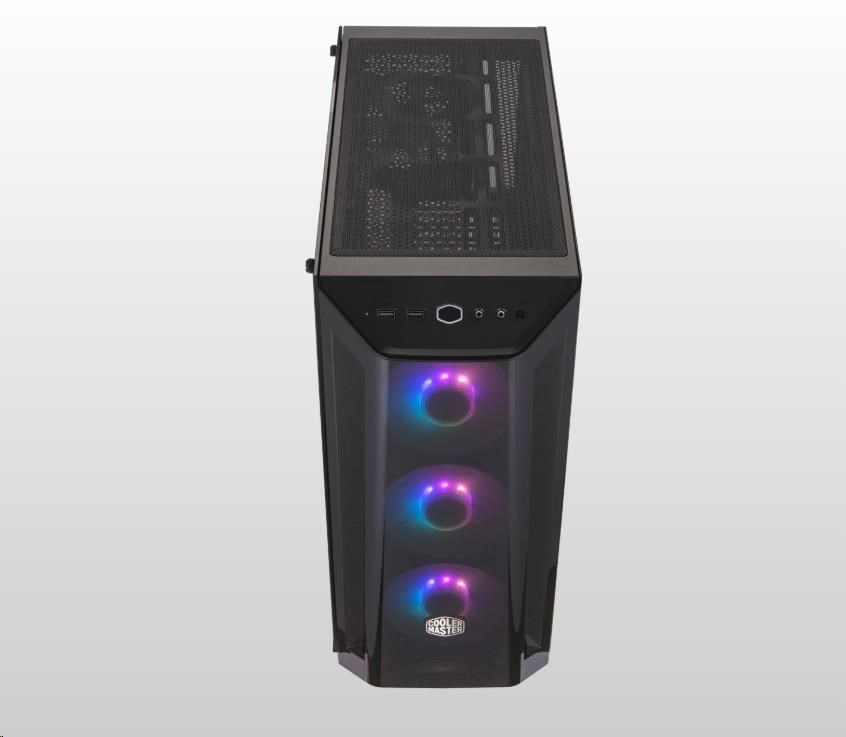

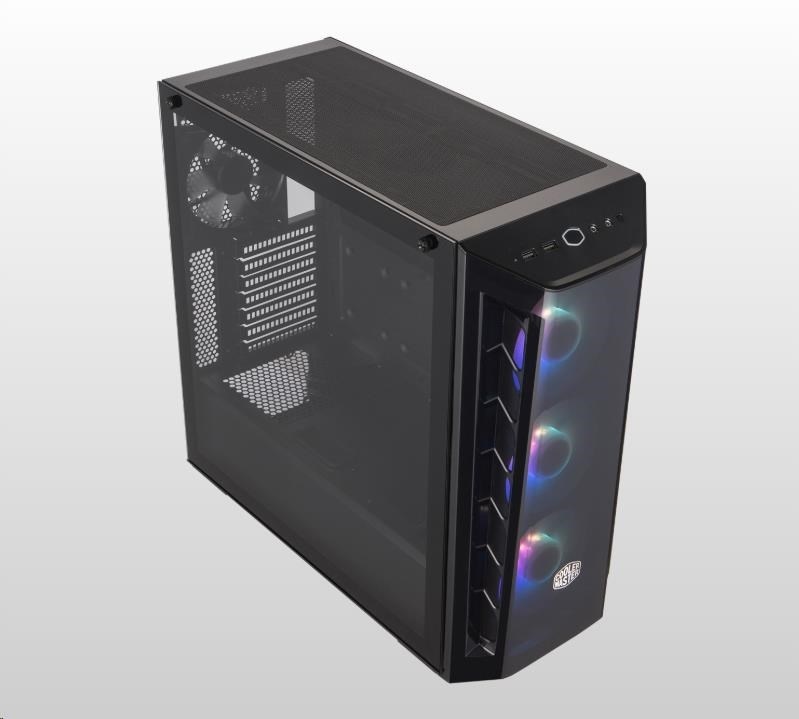

DARKMIRROR FRONT PANEL
Shade light through the DarkMirror front panel for a sharper contrast of the ARGB fans.
MESH INTAKES
Large, mesh intakes on each side of the front panel provide considerable airflow to system.

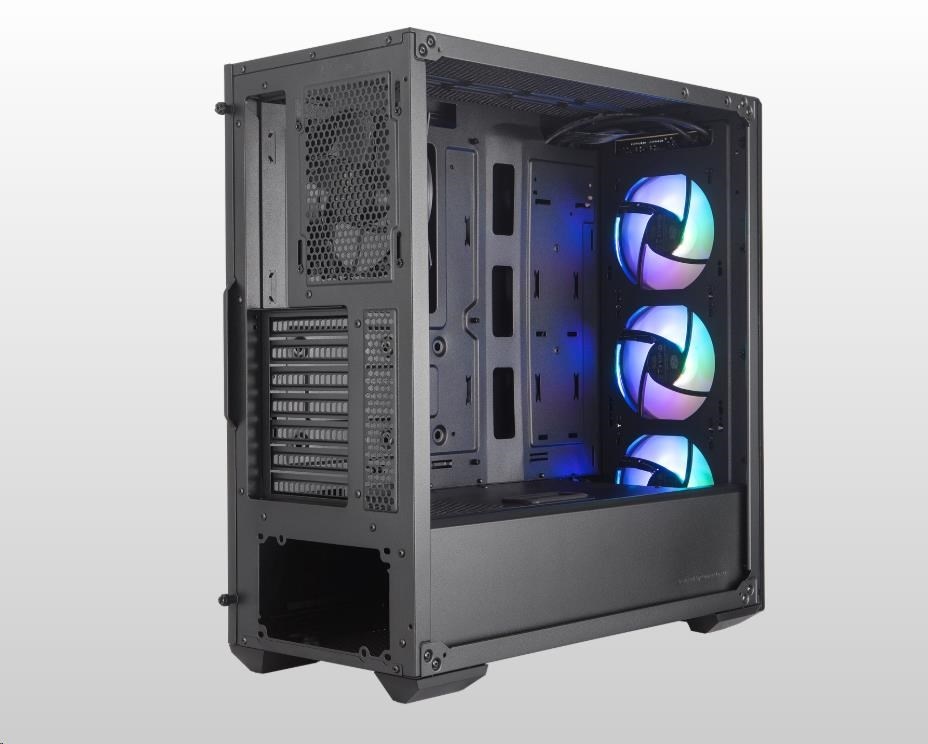

ARGB LIGHTING SYSTEM
Three pre-installed ARGB fans can be managed by either the motherboard or an included controller, connected by the included splitter, to create a comprehensive ARGB lighting system.

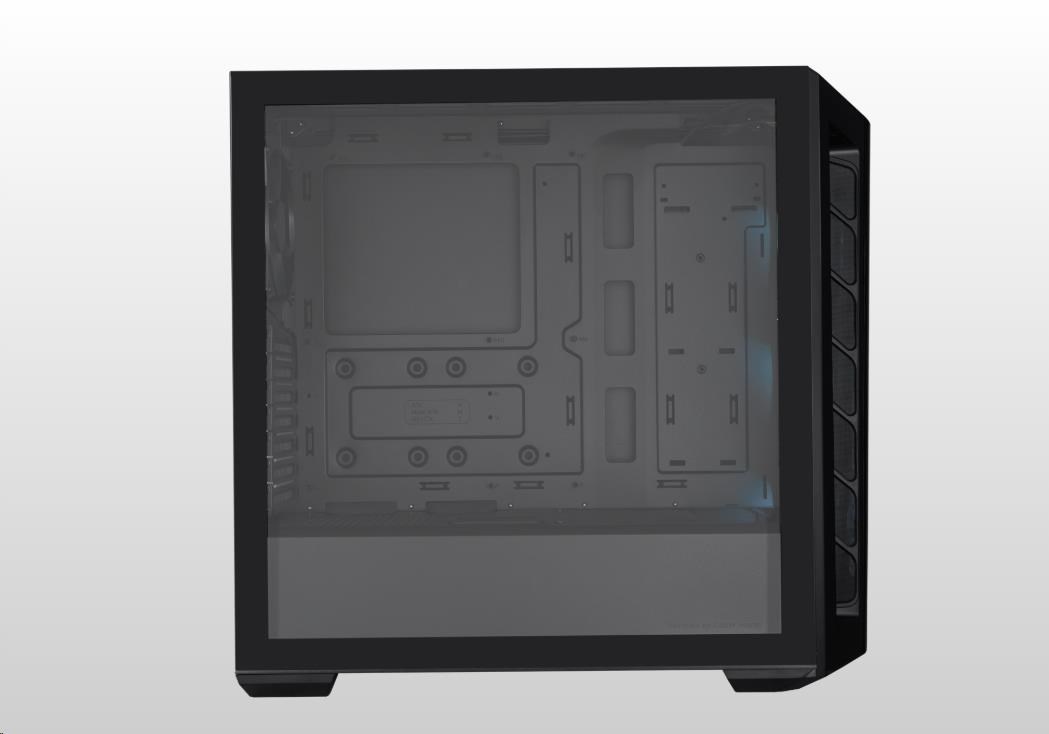

TEMPERED GLASS SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge tempered glass side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
TECHNICAL SPECIFICATIONS
Model Number | MCB-B520-KGNN-RGA |
Series | MasterBox Series |
Size | Mid Tower |
Color | Black |
Materials | Steel, Plastic, Tempered Glass |
Dimension (L x W x H) | 496 x 217 x 469 mm |
Weight | 6.59 kg |
Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, SSI CEB*, (*support for up to 12" x 10.7", will limit cable management features) |
Expanstin slots | 7 |
5.25" Drive Bays | 0 |
2.5"/3.5" Drive Bays (Combo) | 2 (Max.2) |
2.5" Drive Bays | 4 (Max. 6) |
I/O Panel | 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Controller, 1x ARGB 2-to-3 splitter |
Pre-Installed Fans - Front | 3x 120mm ARGB Fan |
Pre-Installed Fans - Rear | 1x 120mm (Black) |
Fan Support - Top | 3x 120mm, 2x 140mm |
Fan Support - Front | 3x 120mm, 2x 140mm |
Fan Support - Rear | 1x 120mm |
Radiator Support - Top | 120mm, 240mm, 360mm, (44mm max motherboard component height) |
Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm, (75mm clearance) |
Radiator Support - Rear | 120mm |
Clearance - CPU Cooler | 165mm/6.49" |
Clearance - PSU | 180mm/7.08" |
Clearance - GFX | 410mm/16.1" |
Cable Routing | 19~27mm |
Dust Filters | Top, Front, Bottom |
Power Supply Support | Bottom mount, ATX |
Warranty | 2 years |
EAN Code | 4719512095171 |
UPC Code | 884102047473 |
.
