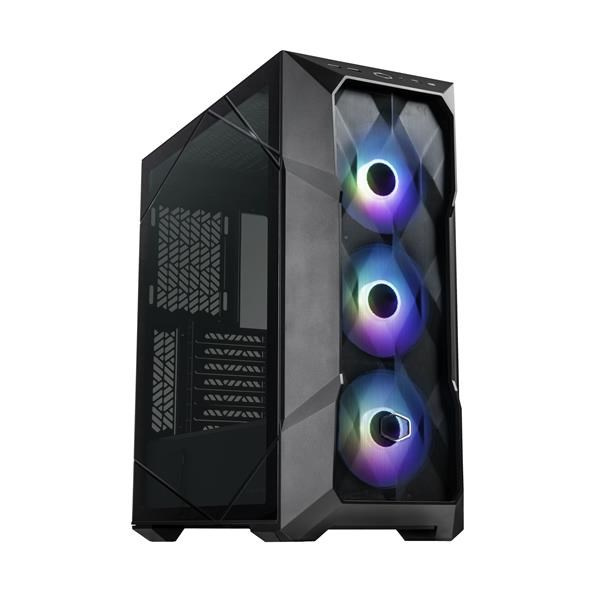

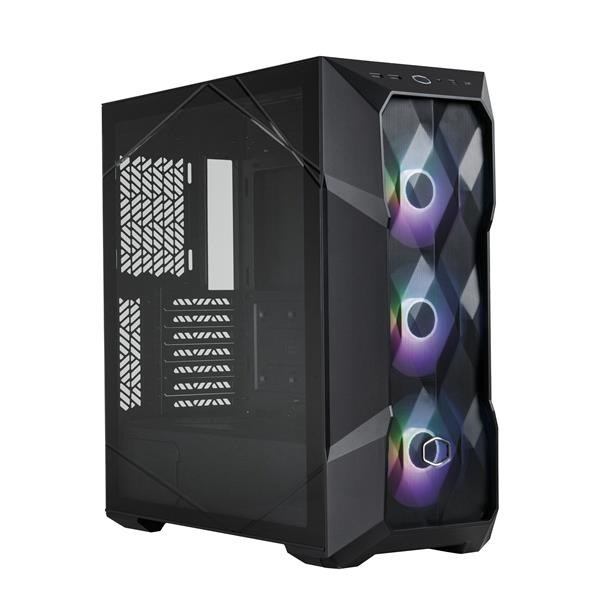

Cooler Master case MasterBox TD500 MESH V2, ATX, bez zdroje, průhledná bočnice, černá
Popis
Parametry
Hlídací pes
TD500 MESH V2
Classic Design Refined
TD500 Mesh V2’s iconic polygonal design paired with included three 120mm ARGB fans engulfs your system in an ever-changing glow, shifting based on the angle viewed to reflect the uniqueness of each gamer’s personality.
Cooler Master’s FineMesh provides the functionality of dust filtration while simultaneously allowing for generous intake and the ultimate experience: smooth running graphics, rapid response rates and blissfully streamlined gaming. Upgraded with USB 3.2 Gen 2 Type C support, TD500 Mesh V2 keep your data transfer at lightning speeds as you power through and play with style.

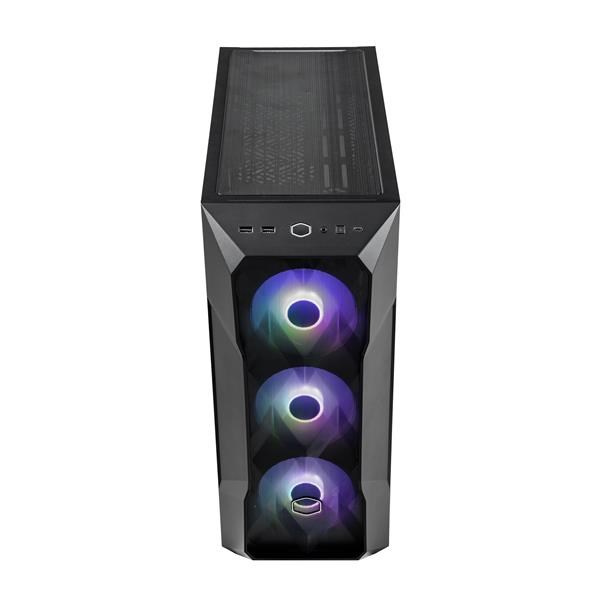

- Polygonal Mesh – Crafted from Cooler Master’s Fine Mesh technology, Polygonal Mesh features a three-dimensional contour and is also capable of simultaneously providing high airflow and dust filtration.

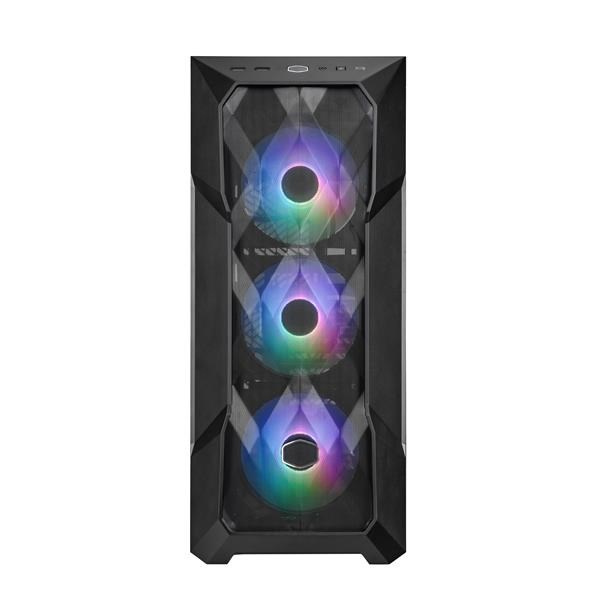

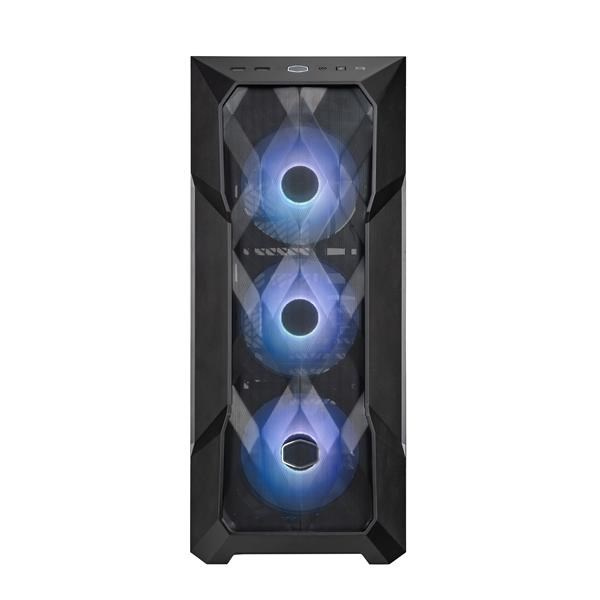

- Triple ARGB Fans – Three addressable RGB fans flood the Polygonal Mesh front panel with lighting while providing considerable airflow to the system.
- USB 3.2 Gen 2 Type C Support – USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
- Versatile Cooling Options – Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.

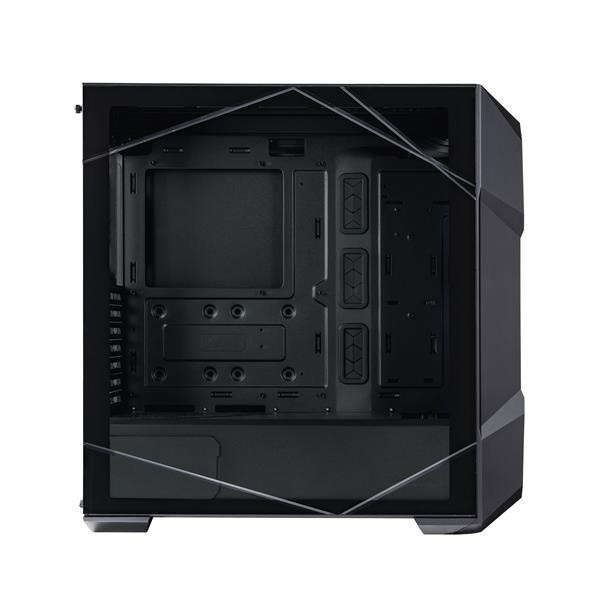

- Tool-Free Crystalline TG Side Panel – A crystalline design spans the edges of the tempered glass side panel, completely toolless for quick access to the internals. An optional screw can be installed to further secure the tempered glass side panel.
- PSU Shroud With Removable Cover - TD500 Mesh V2’s removable PSU cover allows users to freely showcase unique PSU designs or keep PSUs hidden for a stealthier aesthetic. When not in use, the PSU cover can be stored on the motherboard tray for easy safekeeping.
- Removable Top Panel – The top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
TECHNICAL SPECIFICATIONS
Product Name | TD500 Mesh V2 |
Product Number | TD500V2-KGNN-S00 |
Exterior Color | Black |
Material | Exterior - Steel, Mesh, Plastic Left Side Panel - Tempered Glass |
Dimensions (L x W x H) | incl. Protrusions - 499x210x500mm excl. Protrusions - 430x210x477mm |
Volume (Liters excl. Protrusions) | 50L |
Motherboard Support | Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12” x 10.7” motherboards, may impact cable management feature) |
Expansion Slots | 7 |
Drive Bays | 5.25“ ODD - N/A 3.5” HDD - 2 2.5” SSD - 3 |
I/O Panel | USB Ports - 2 x USB 3.2 Gen 1 + 1x USB3.2 Gen 2 type C Audio - Audio jack x1 Other - 1 x ARGB fan Hub |
Pre-installed Fan(s) | Top - N/A Front - 3 x 120mm CF120 ARGB Rear - N/A |
Fan Support | Top - 3 x 120mm, 2 x 140mm Front - 3 x 120mm, 2 x 140mm Rear - 1 x 120mm |
Radiator Support | Top - 120/140/240/280/360mm (recommended maximum thickness - 55mm) Front - 120 / 140 / 240 / 280 / 360mm Rear - 120mm |
Clearances | CPU Cooler - 165mm / 6.49” Power Supply - 200mm (Recommended up to 170mm) Graphics Card - 410mm / 16.14” |
Cable Routing | Behind MB Tray - 19mm / 0.74” |
Dust Filters | Front, Top, Bottom |
Power Supply Support | Bottom Mount, ATX |
Warranty | 2 Years |
.
Provedení skříně:
Server Tower - ATX
Počet pozic 3.5" (HDD):
2
Počet pozic 2.5" (SSD):
3
Vybavení PC skříně:
Průhledná bočnice
Vybavení PC skříně:
Bez integrovaného zdroje
Vybavení PC skříně:
Přední Audio panel
Vybavení PC skříně:
Přední USB panel
Aktuální cena produktu je2763Kč
s dph
