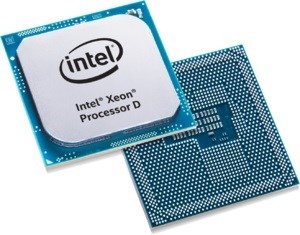

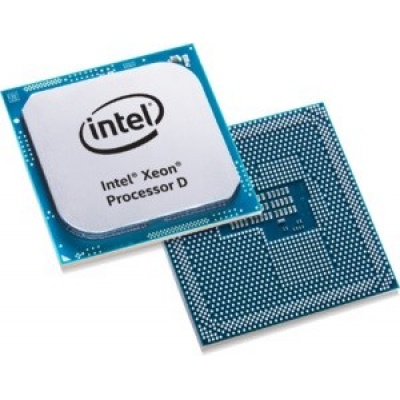

CPU INTEL XEON D-1521, FCBGA1667, 2.40 GHz, 6MB L3, 4/8, tray (bez chladiče)
Popis
Parametry
Hlídací pes
| Code Name | Broadwell |
| Essentials | |
| Vertical Segment | Server |
| Processor Number | D-1521 |
| Lithography | 14 nm |
| Performance | |
| # of Cores | 4 |
| # of Threads | 8 |
| Processor Base Frequency | 2.40 GHz |
| Max Turbo Frequency | 2.70 GHz |
| Cache | 6 MB |
| TDP | 45 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4, DDR3 |
| Maximum Memory Speed | 2133 MHz |
| Max # of Memory Channels | 2 |
| ECC Memory Supported ‡ | Yes |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 2.0/3.0 |
| PCI Express Configurations ‡ | x4 x8 x16 |
| Max # of PCI Express Lanes | 32 |
| I/O Specifications | |
| # of USB Ports | 8 |
| USB Revision | 2.0/3.0 |
| Total # of SATA Ports | 6 |
| Integrated LAN | Yes |
| General Purpose IO | Yes |
| UART | Yes |
| Networking Specifications | |
| Interfaces Supported | SFI, KR, KX, 1000Base-T, 10GBase-T |
| Package Specifications | |
| Sockets Supported | FCBGA1667 |
| Max CPU Configuration | 1 |
| Package Size | 37.5mm x 37.5mm |
| Advanced Technologies | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® TSX-NI | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® OS Guard | Yes |
.
Řada procesorů:
Intel Xeon
Druh procesoru:
Serverový
Vybavení procesoru:
Bez chladiče
Aktuální cena produktu je8040Kč
s dph
