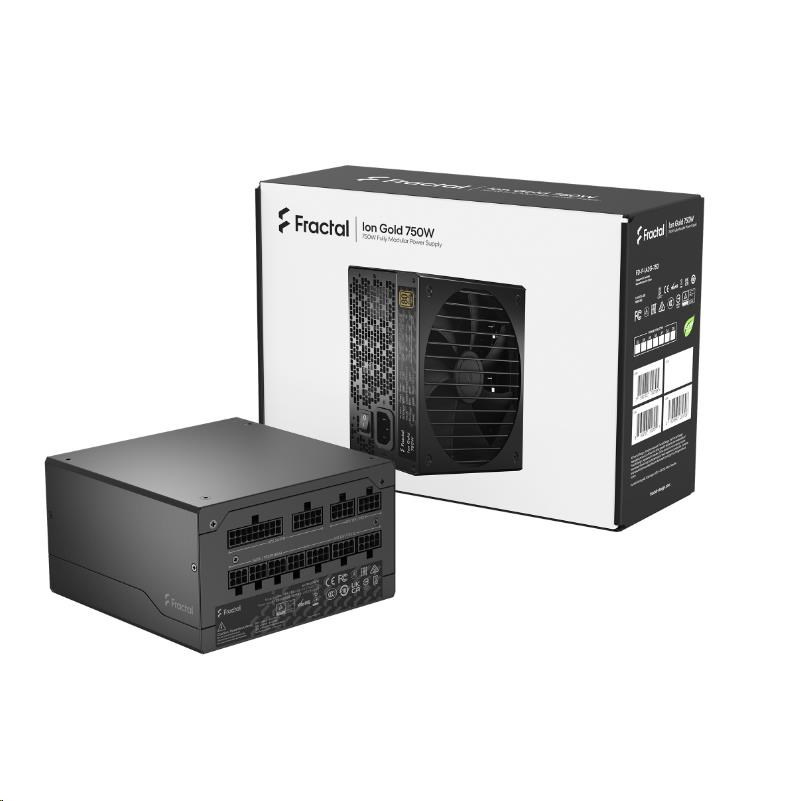

FRACTAL DESIGN zdroj Ion 750W GOLD, modular, 80+ Gold
Popis
Parametry
Hlídací pes
Ion Gold 750W
The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.
- 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
- Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
- Fully modular design for reduced clutter and maximum ease of installation
TECHNICAL SPECIFICATIONS
| 80PLUS® certification | Gold |
| Modular cables | Fully Modular |
| Fan type | 140 mm LLS bearing Fractal Design Dynamic series fan |
| Maximum operating temperature (full load) | 40°C, 50°C at 80% load |
| Semi-passive operation | No |
| Capacitors | Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors |
| Life expectancy | 100,000 hours |
| Cable type | Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires |
| Input voltage | 100-240V AC |
| Input frequency | 50-60 Hz |
| Input current | 10A/5A |
| Protection features | Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection |
| PSU specification compliance | ATX12V 2.52; EPS12V 2.92 |
| PSU color | Black |
| Sleep state compliance | C6/C7 compatible |
| Approvals & certifications | CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE |
| Warranty | 7 years |
| Connectors | |
| ATX 24-pin | 1 |
| EPS/ATX12V | 2 |
| PCIe | 4 |
| SATA | 8 |
| Peripheral | 3 |
| DC Output | |
| 3.3V | 22A |
| 5V | 22A |
| 3.3V and 5V combined | 120W |
| 12V | 62.5A |
| -12V | 0.3A |
| +5Vsb | 3A |
| Total Power | 750W |
| Cable Configuration (length in mm between connectors) | |
| ATX 24-pin | 500 |
| ATX 12V 4+4 pin | 600 |
| EPS12V 8-pin | 600 |
| PCIe 6+2 pin | 550+150 |
| SATA | 500+150+150+150 |
| Peripheral | 500+150+150 |
.
Konektory:
SATA 15-pin
Konektory:
PCIe 8-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
750
Aktuální cena produktu je4025Kč
s dph
