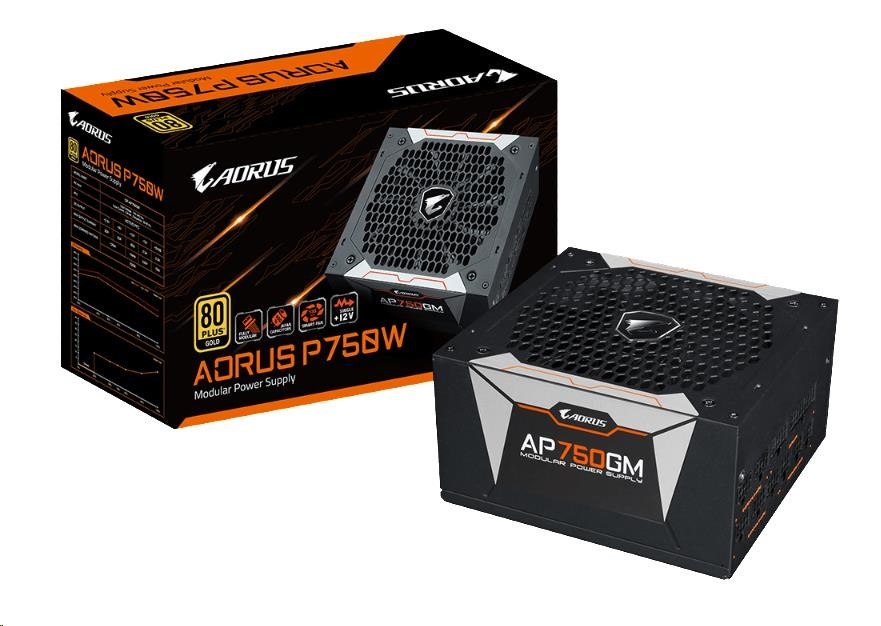

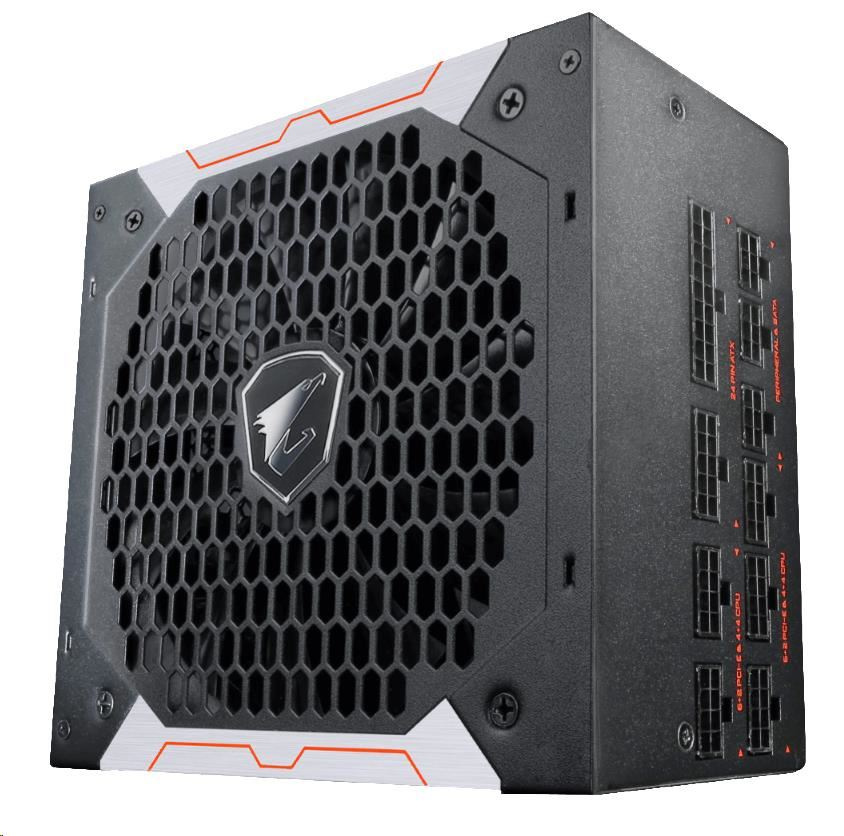

GIGABYTE zdroj AORUS AP750GM, 750W, 80plus gold, modular, 135 mm fan
Popis
Parametry
Hlídací pes
AORUS P750W 80+ GOLD Modular
- Fully Modular Design
- High quality 100% Japanese Capacitors

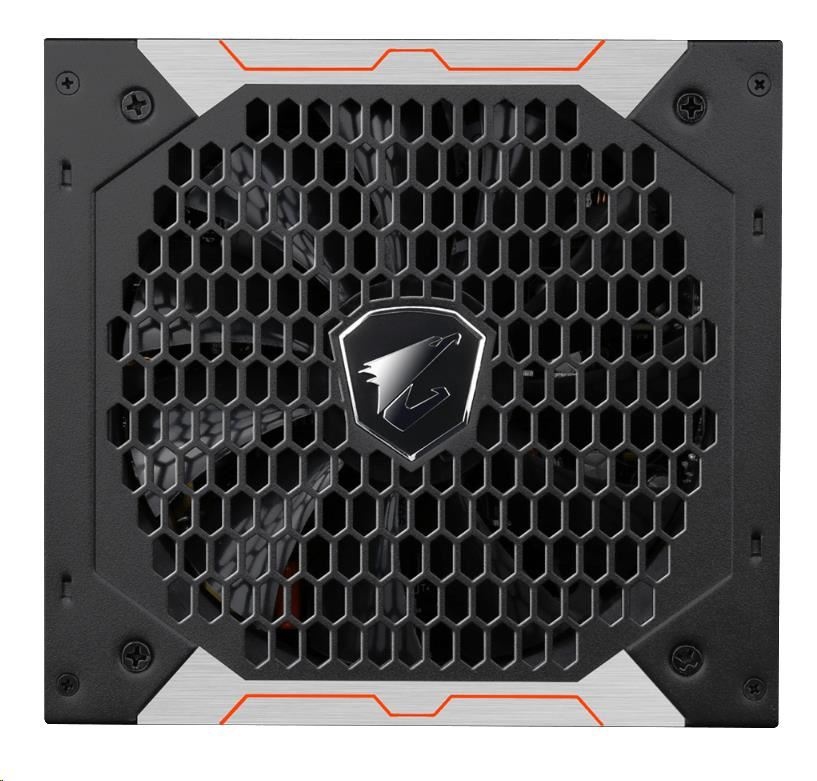

- 135mm 2 ball bearing smart fan with fan stop function
- 80 PLUS Gold certified: above 90% efficiency at 50% load
- Single +12V rail
- OCP/OTP/OVP/OPP/UVP/SCP protection
- 10 years warranty (Adjusted according to different regions)
TECHNICAL SPECIFICATIONS
| Model | GP-AP750GM |
| Type | Intel Form Factor ATX 12V v2.31 |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 100-240 Vac (full range) |
| Input Current | 10A |
| Input Frequency | 47-63 Hz |
| Output Capacity | 750W |
| Dimension | 150 x 160 x 86mm |
| Fan Type | 135mm Double ball bearing fan |
| Efficiency | 90% at typical load |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Cable Type | Flat, All black |

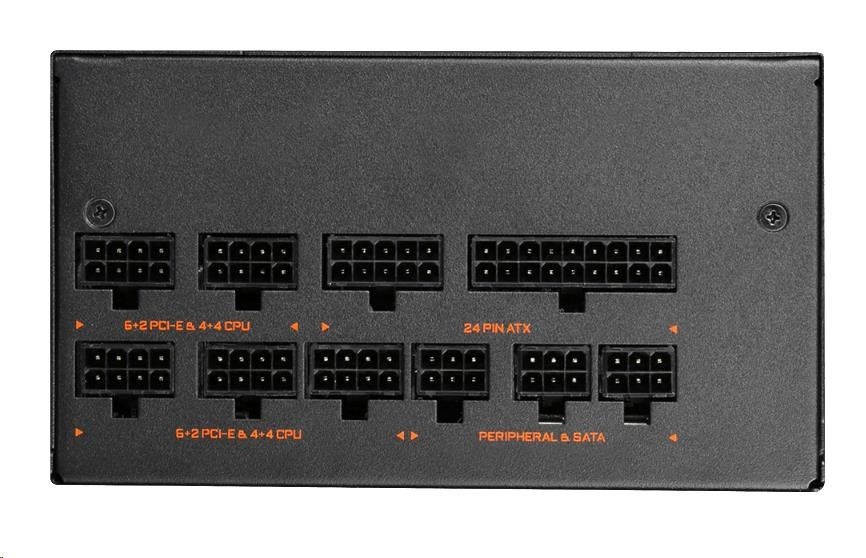

| Connectors | ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1 SATA x6 + 4 Pin Peripheral x2 : 550mm+100mm+100mm+100mm*1 450mm+100mm+100mm+100mm *1 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 4 Pin Floppy x 1 : 100mm |
.
Formát zdroje:
ATX
Konektory:
8pin CPU 1x
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Modulární kabeláž:
Ano
Výkon zdroje (W):
750
Aktuální cena produktu je3110Kč
s dph
