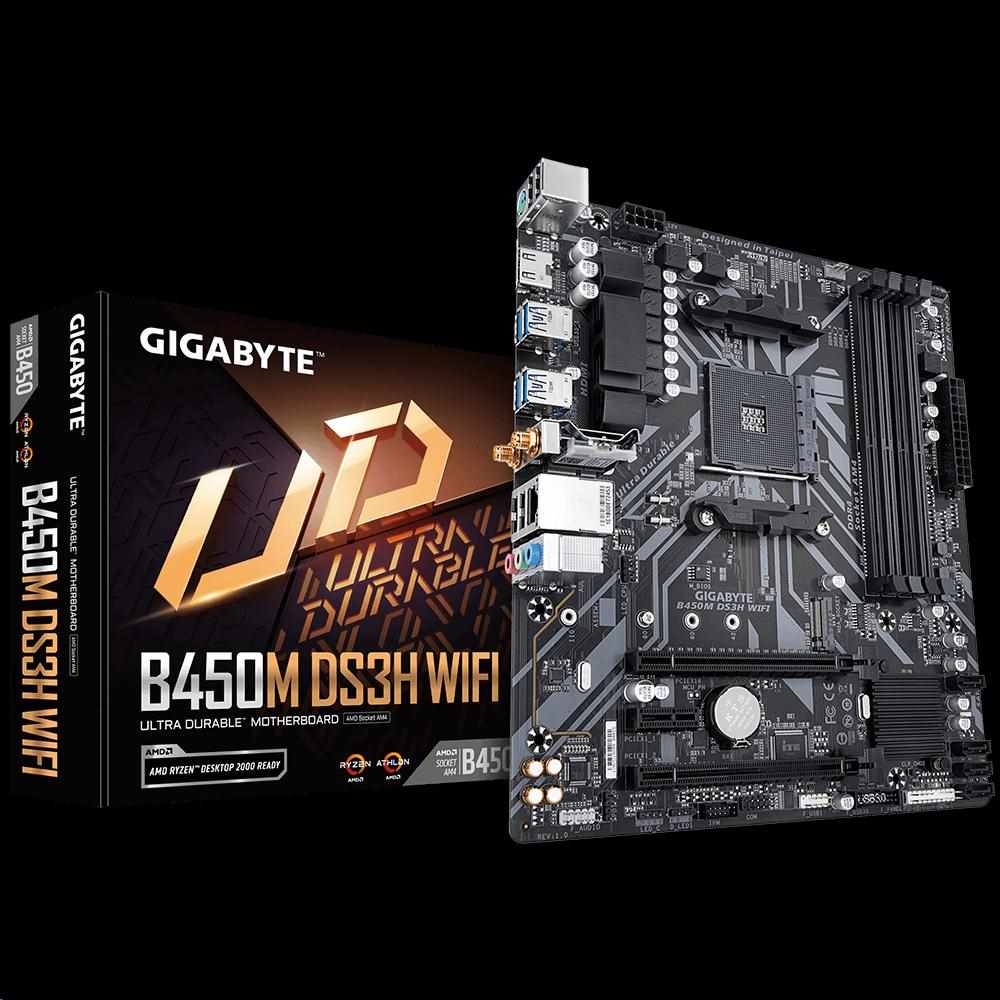

GIGABYTE MB Sc AM4 B450M DS3H WIFI, AMD B450, 4xDDR4, 1xHDMI, mATX
Popis
Parametry
Hlídací pes

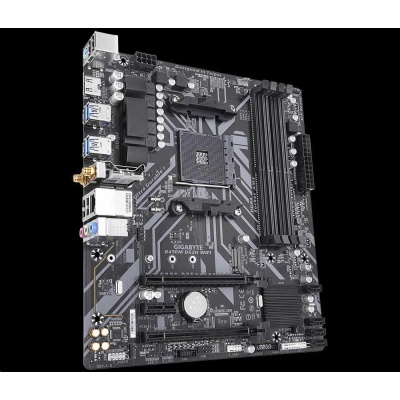

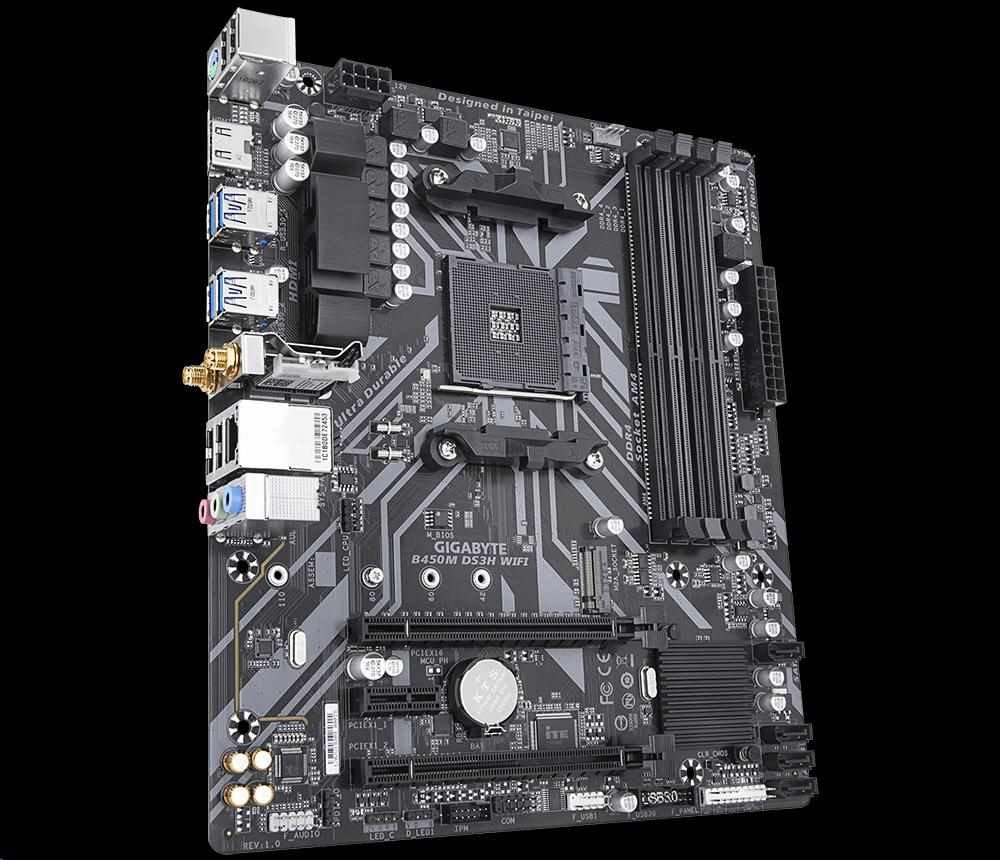

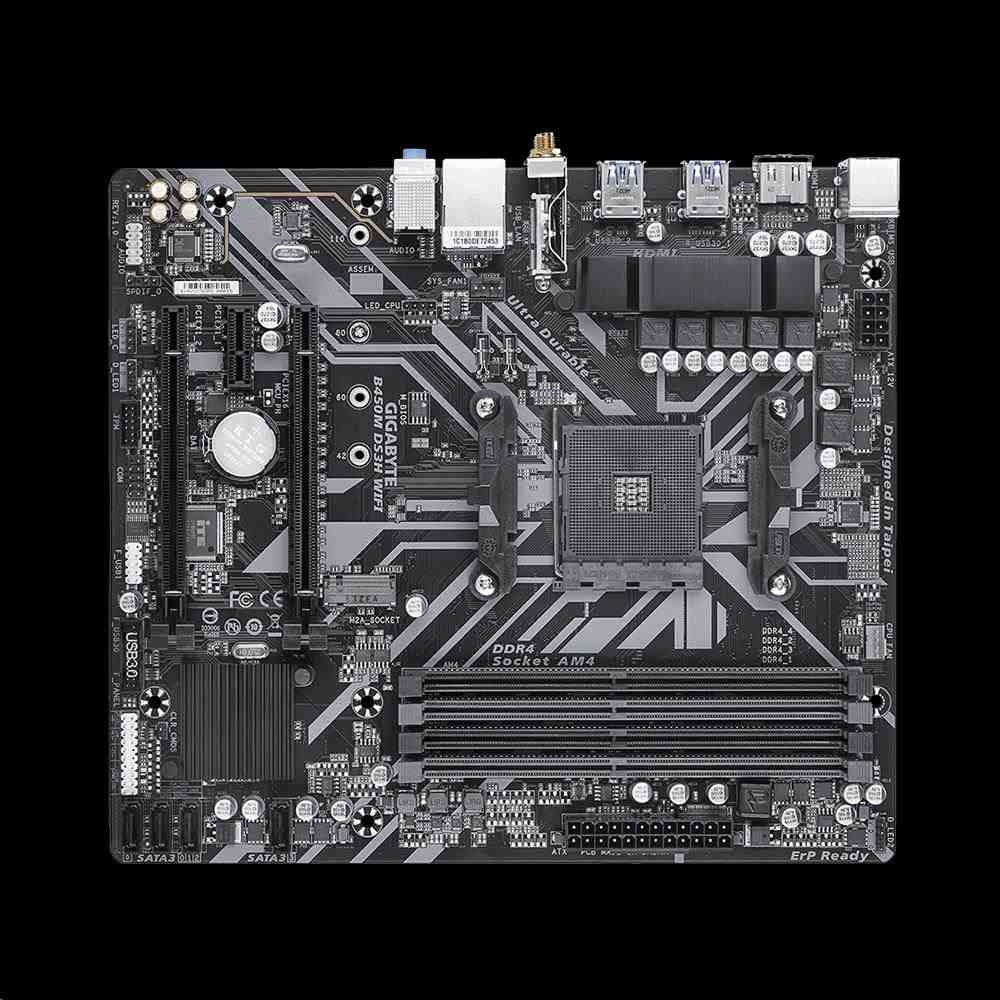

B450M DS3H WIFI (rev. 1.x)
AMD B450 Ultra Durable Motherboard with Realtek® GbE LAN with cFosSpeed, PCIe Gen3 x4 M.2, RGB FUSION 2.0, Intel® Dual Band 802.11ac WIFI, CEC 2019 ready
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Dual Band 802.11ac WIFI & BT 4.2
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- High Quality Audio Capacitors and Audio Noise Guard Design
- RGB FUSION 2.0 with Addressable RGB & RGB LED Strips Support
- Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software
- Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
- APP Center Including EasyTune™ and Cloud Station™ Utilities
- CEC 2019 Ready, Save Power with a Simple Click
TECHNICAL SPECIFICATIONS
| CPU | AM4 Socket: Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
| Chipset | AMD B450 |
| Memory | - 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory - Dual channel memory architecture - Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules - Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
| Audio | - Realtek® ALC887 codec - High Definition Audio - 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. - Support for S/PDIF Out |
| LAN | Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Wireless Communication module | - Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment. |
| Expansion Slots | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) (Note) Actual support may vary by CPU. |
| 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) | |
| 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) | |
| Onboard Graphics | Integrated Graphics Processor: (Note) Actual support may vary by CPU. |
| Storage Interface | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU. |
| 4 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, and RAID 10 * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. | |
| USB | CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
| Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |

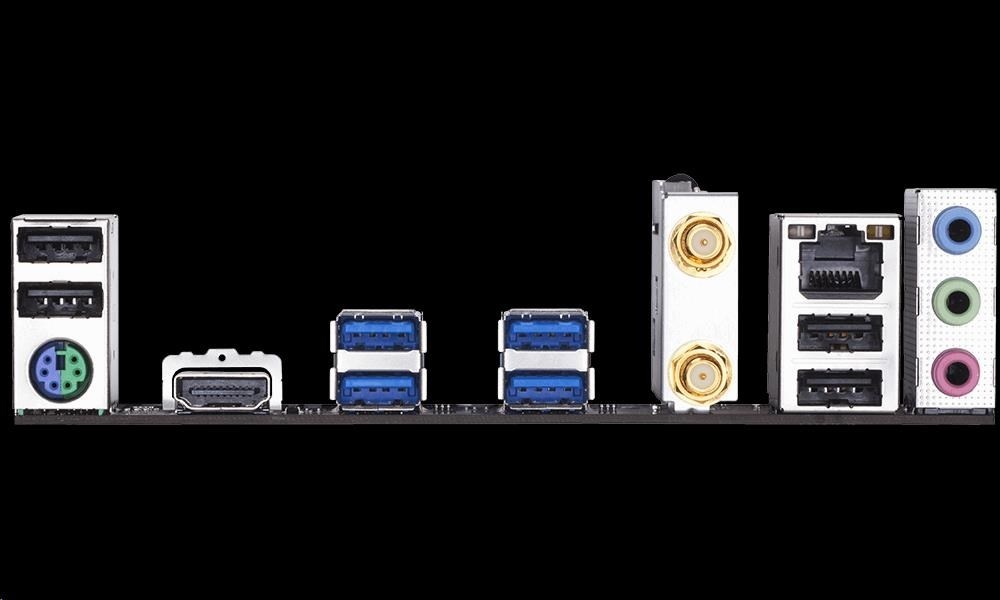

| Back Panel Connectors | 1 x PS/2 keyboard/mouse port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x RJ-45 port 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
| BIOS | - 1 x 128 Mbit flash - Use of licensed AMI UEFI BIOS - PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | - Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer - Support for Q-Flash - Support for Xpress Install |
| Bundled Software | - Norton® Internet Security (OEM version) - cFosSpeed |
| Operating System | - Support for Windows 10 64-bit - Support for Windows 7 64-bit * To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7. |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Remark | - Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. - Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. |
.
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Integrovaná grafická karta:
Ano (CPU)
Chipset:
AMD
PCI Express x16:
1
Integrovaná LAN karta:
1
Podpora RAID:
1
Podpora RAID:
10
Formát základní desky:
micro ATX
Aktuální cena produktu je2559Kč
s dph
