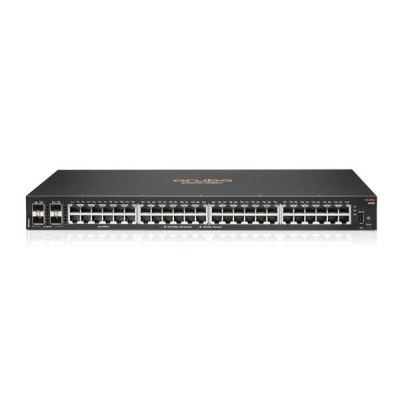

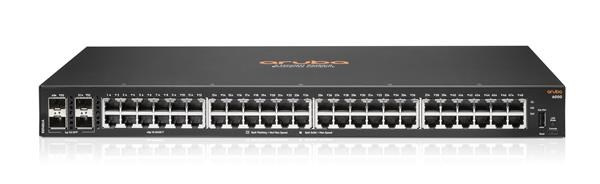

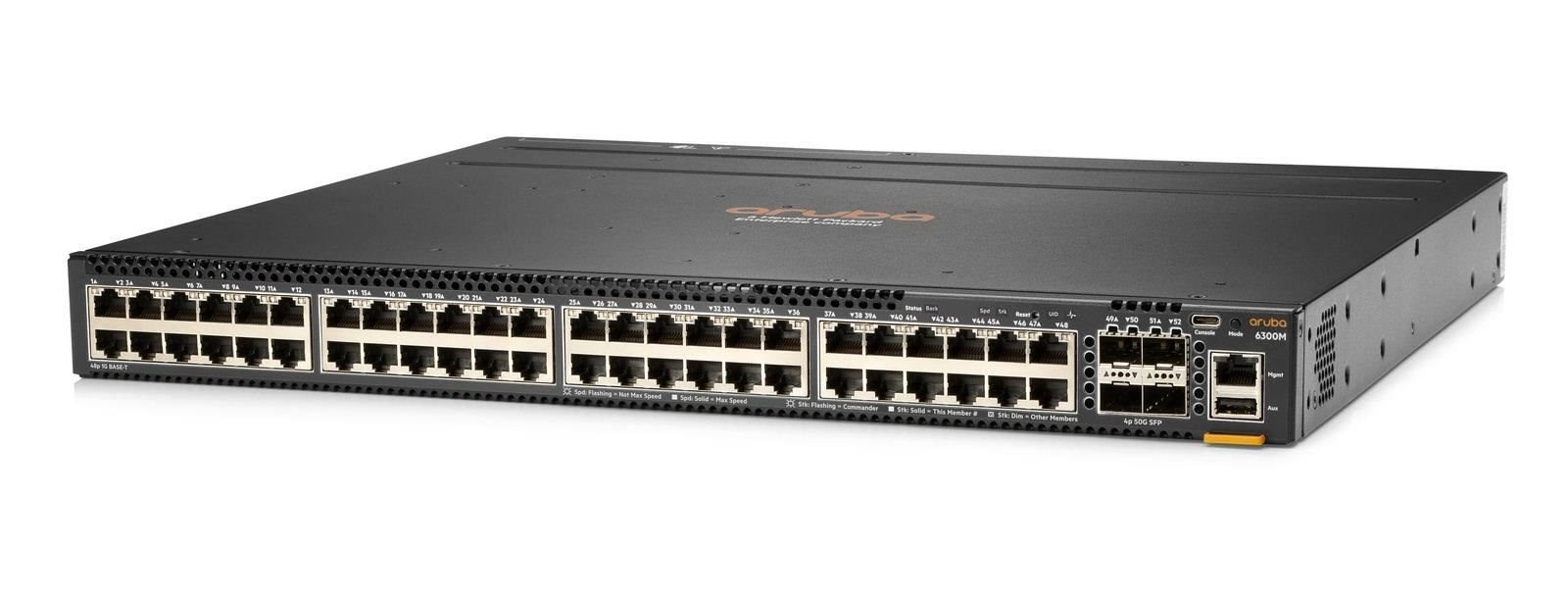

HPE Aruba Networking CX 6000 48G Class4 PoE 4SFP 370W Switch

Aruba 6000 48G 4SFP Switch

(R8N86A)

Description

48x ports 10/100/1000BASE-T Ports

4x 1G/1G SFP ports

1x USB-C Console Port

1x USB Type-A Host port

Power supplies

Fixed power supply

Fans

Fixed fans

Dimensions

(H) 4.39 cm (W) 44.2 cm (D) 24.74 cm (1.73" x 17.4" x 9.74")

Configuration Weight

3.42 kg (7.54 lbs)

CPU

Dual Core ARM Cortex A9 @ 1016 Mhz

Memory and Flash

4 GB DDR3 16 GB eMMC

Packet Buffer

12.38MB (4.5MB Ingress/7.875MB Egress)

Model Switching Capacity

104 Gbps

Model Throughput Capacity

77.3 Mpps

Average Latency (LIFO-64- bytes packets)

1 Gbps: 1.9 µSec

Switched Virtual Interfaces (dual stack)

16

IPv4 Host Table (ARP)

1,024

IPv6 Host Table (ND)

512

IPv4 Unicast Routes

512

IPv6 Unicast Routes

512

MAC Table Capacity

8,192

IGMP Groups

512

MLD Groups

512

IPv4/IPv6/MAC ACL Entries (ingress)

256 / 128 / 256

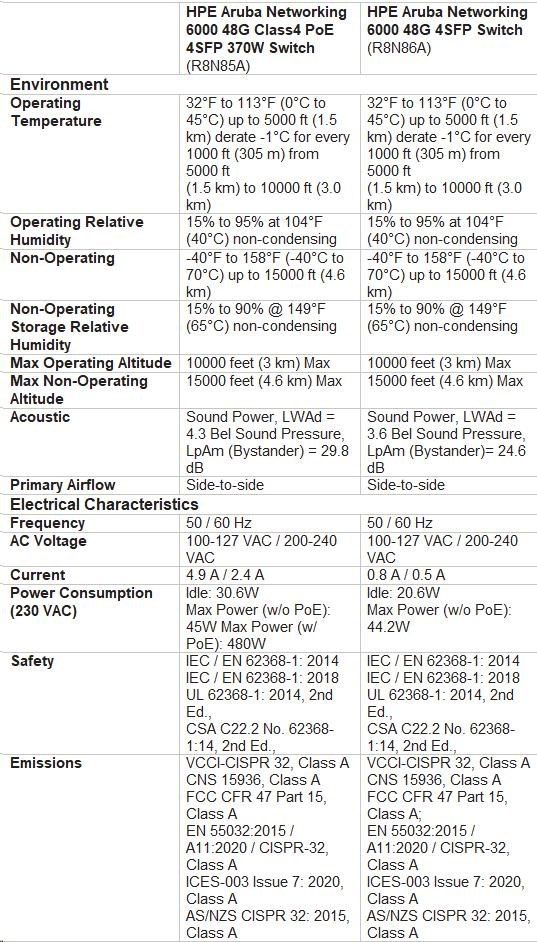

Operating Temperature

32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Operating Relative Humidity

15% to 95% at 104°F (40°C) non-condensing

Non-Operating

-40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)

Non-Operating Storage Relative Humidity

15% to 90% @ 149°F (65°C) non-condensing

Max Operating Altitude

10000 feet (3 km) Max

Max Non-Operating Altitude

15000 feet (4.6 km) Max

Acoustic

Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander)= 24.6 dB

Primary Airflow

Side-to-side

Electrical Characteristics

Frequency

50 / 60 Hz

AC Voltage

100-127 VAC / 200-240 VAC

Current

0.8 A / 0.5 A

Power Consumption (230 VAC)

Idle: 20.6W Max Power (w/o PoE): 44.2W

Safety

UL 60950-1; IEC 60950-1;

EN 60950-1; CAN/

CSA-C22.2 No. 60950-1;

EN 60825-1

UL 62368-1 Ed. 2; IEC

62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS

13438; ICES-003 Issue 6

Class A; FCC CFR 47

Part 15, Class A;

EN 55032: 2015 +AC:2016 /

CISPR-32, Class A
