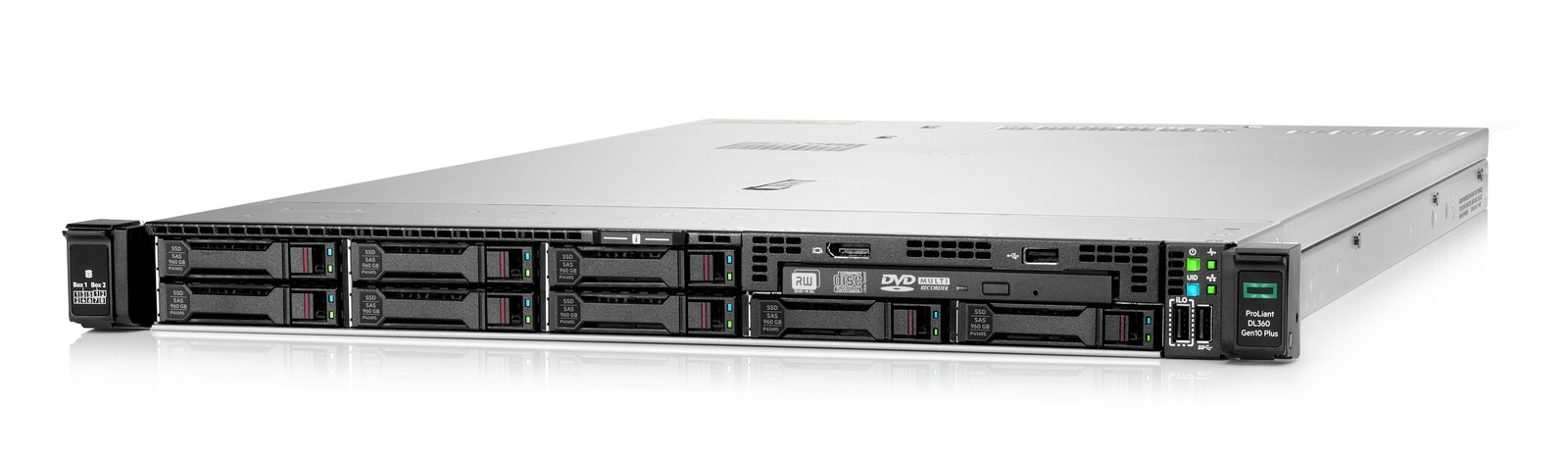

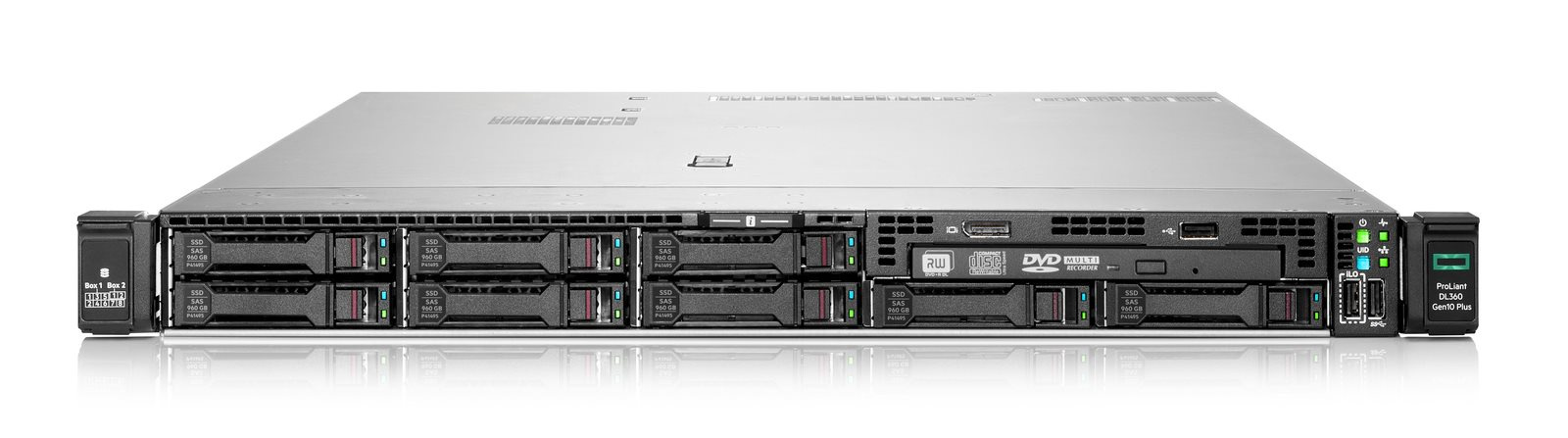

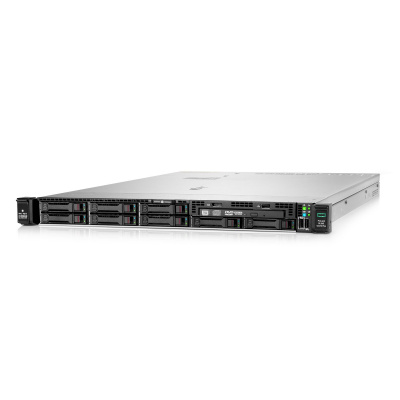

HPE PL DL360g10 Plus 5315Y (3.2G/8C) 1x32G MR416i-a/4Gsb 8SFFBCU3 1x800W 2x10G-T ocp
HPE ProLiant DL360 Gen10 Plus 5315Y (3.2G/8C/12M/2933) 1x32G MR416i-a/4Gssb 8SFFBCU3 1x800Wti 2x10GNCTocp EIR NBD333 1U
SKU Number | P55276-421 |
Model Name | HPE ProLiant DL360 Gen10 Plus 5315Y 3.2GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server |
Chassis | 8SFF |
Backplane | 8SFF x1 Tri-mode U.3 BC |
Processor | 5315Y (8-Core, 3.2 GHz, 140W)2 |
Number of Processors | One processor with standard heatsink |
Memory | 32 GB RDIMM 2R 3200 MT/s (1x 32 GB) & 31 DIMM blanks Notes: Runs at 2933 MT/s due to processor limitation |
Network Controller | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE Notes: No embedded networking |
Storage Controller | MR416i-a/4GB with Smart Storage Battery |
Hard Drive | None included |
Optical Drive | Not included (Optical Drive options available) |
PCIe Slots | 2 PCIe: 1 x16 FH, 1 x16 LP |
Power Supply | 1x 800W Titanium |
Fans | 7 - High Performance |
Management | HPE iLO 5 |
Security | TPM (Trusted Platform Module) Notes: Disabled on AA1 SKUs |
Rail Kit | Easy Install w/o CMA Notes: Server does not support shelf mounted rail kits ("L" brackets). |
Form Factor | 1U Rack |
Warranty | 3-year parts, 3-year labor, 3-year onsite support with next business day response. |
.
