INTEL Server Chassis H2224XXLR3
Popis
Parametry
Hlídací pes
| Code Name | Buchanan Pass |
| Essentials | |
| Expected Discontinuance | Q3'21 |
| Limited 3-year Warranty | Yes |
| Extended Warranty Available for Purchase (Select Countries) | Yes |
| Chassis Form Factor | 2U, 4 node Rack Chassis |
| Chassis Dimensions | 3.46" x 17.24" x 28.86" |
| Target Market | High Performance Computing |
| Power Supply | 2130 W |
| Power Supply Type | AC |
| # of Power Supply Included | 2 |
| Redundant Fans | No |
| Redundant Power Supported | Yes |
| Backplanes | Included |
| TDP | 140 W |
| Included Items | (1) Front Control Panels - iPC FH2000FPANEL2 (1) Power Distribution Board - iPC FXXCRPSPDB2 Power Interposer Board - iPC FXXCRPSPIB (2) 2130W 80 Plus Platinum PSUs – iPC FXX2130PCRPS(1) 24 x 2.5’’ Hot-swap drive bay, includes:- (24) Tool less drive carriers (1) 24x2.5” Hot swap backplane, iPC- HW24X25HS12G (4) - Compute Module Bay Fillers(1) - Basic rack rail mount kit (AXXELVRAIL)NOTE: The rail kit only supports specific rack type with 3/8” square and 7.1mm round holes. |
| Supplemental Information | |

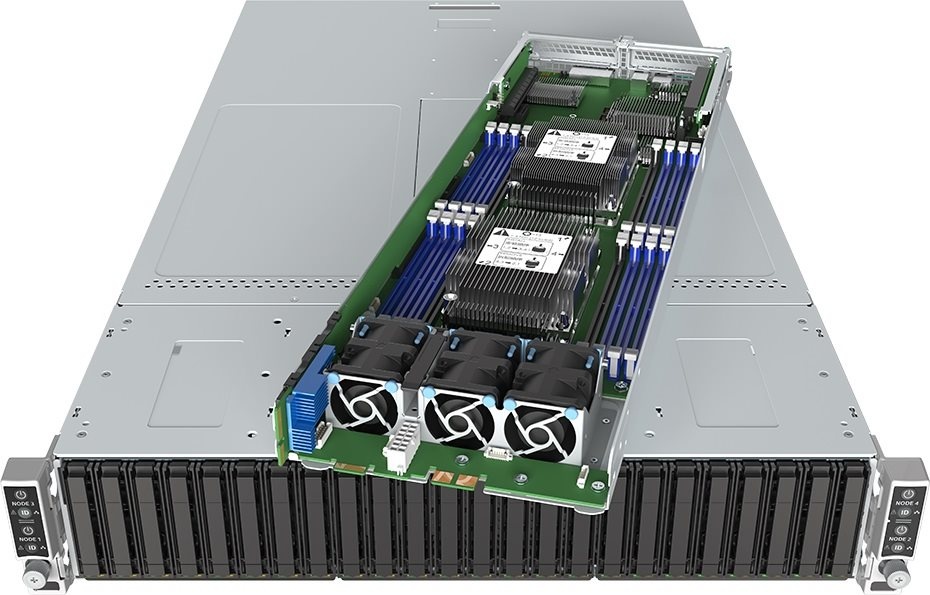

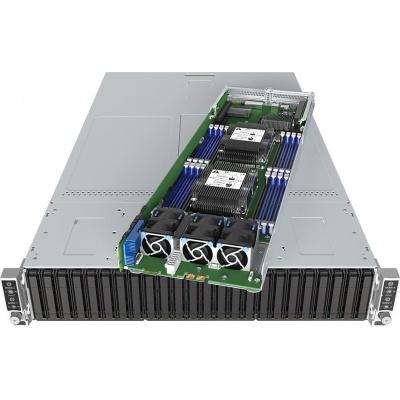

| Description | 2U rack chassis supporting up to four hot-pluggable compute modules Intel(r) Compute Module HNS2600BP*24 product family, up to 24 hot-swap drives, and two 2130W common redundant power supplies |
| Memory & Storage | |
| # of Front Drives Supported | 24 |
| Front Drive Form Factor | Hot-swap 2.5" |
| Package Specifications | |
| Max CPU Configuration | 8 |
.
Druh produktu:
Skříň
Aktuální cena produktu je50397Kč
s dph
