Manhattan hub, 7-portů, USB 3.0 Type-A, černá
Popis
Parametry
Hlídací pes

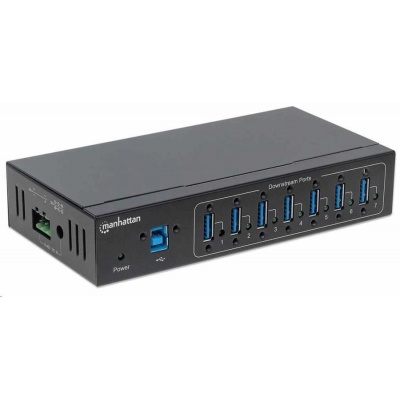

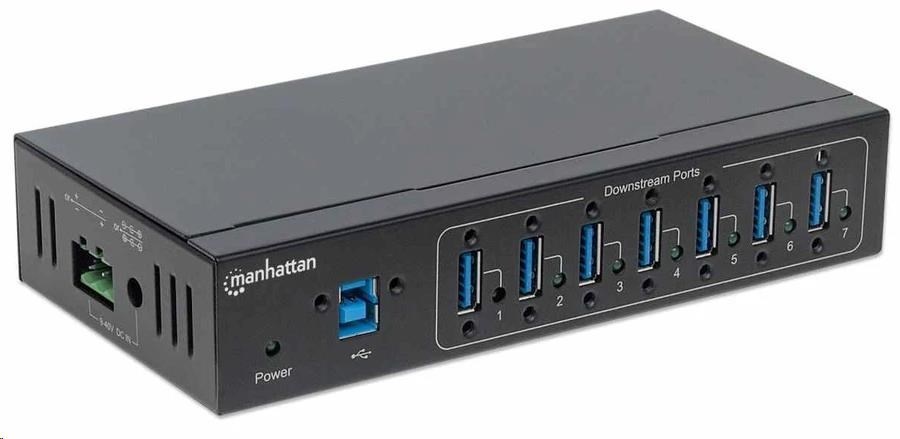

7-Port Industrial USB 3.0 Hub
The Manhattan 7-Port Industrial USB 3.0 Hub easily expands and secures your USB access in industrial environments and high traffic areas. Versatile, sturdy mounting options allow the hub to be secured to a wall, used on a desktop or added to a DIN rail. This hub creates more open connection points for USB 3.0 devices, such as external hard drives and printers. Built-in screw-lock ports offer security for cables and additional stability from vibrations in the surrounding environment. It is backward compatible with previous USB standards to provide flexibility for attached devices. The Manhattan 7-Port Industrial USB 3.0 Hub offers plug-and-play, hot-swap capabilities and data transfer speeds up to 5 Gbps.

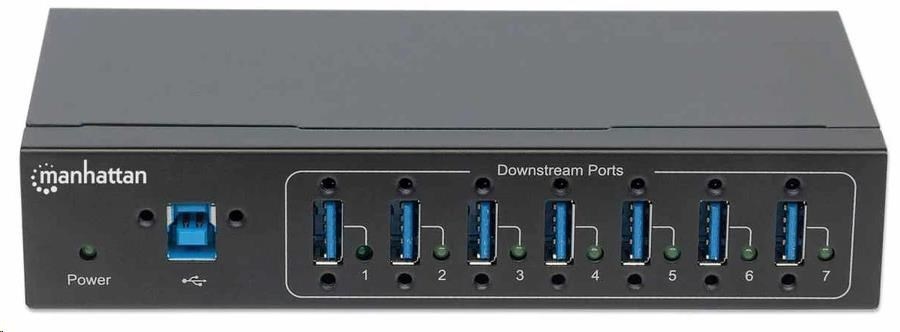

- Provides seven SuperSpeed USB 3.0 ports for additional peripherals
- Supports data transfer rates up to 5 Gbps
- Rugged metal housing and screw-locking USB connections offer robust security in high-traffic areas and industrial environments

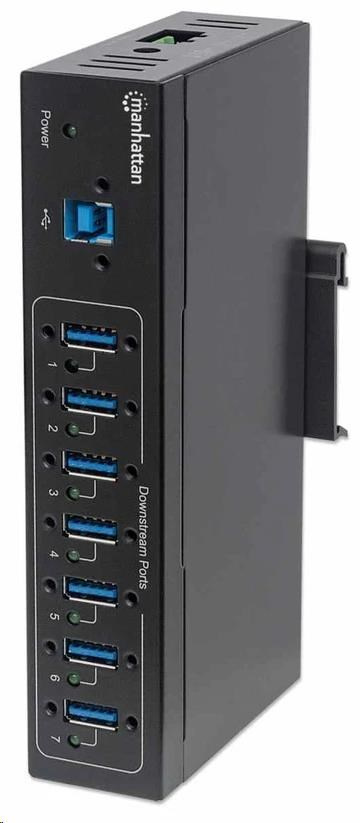

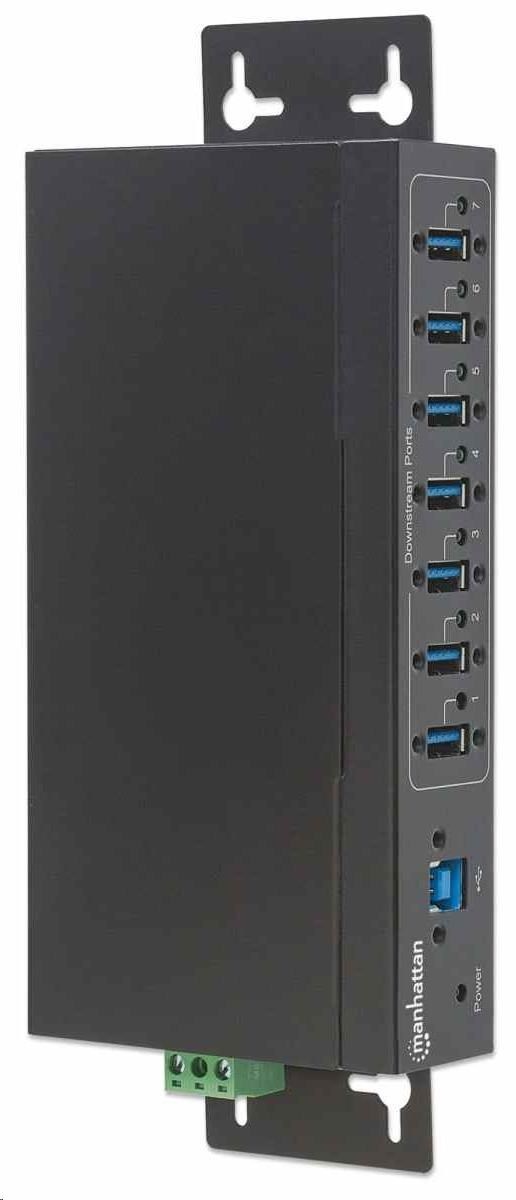

- Built-in rubber feet, detachable wall mounts and DIN-rail support provide multiple installation options

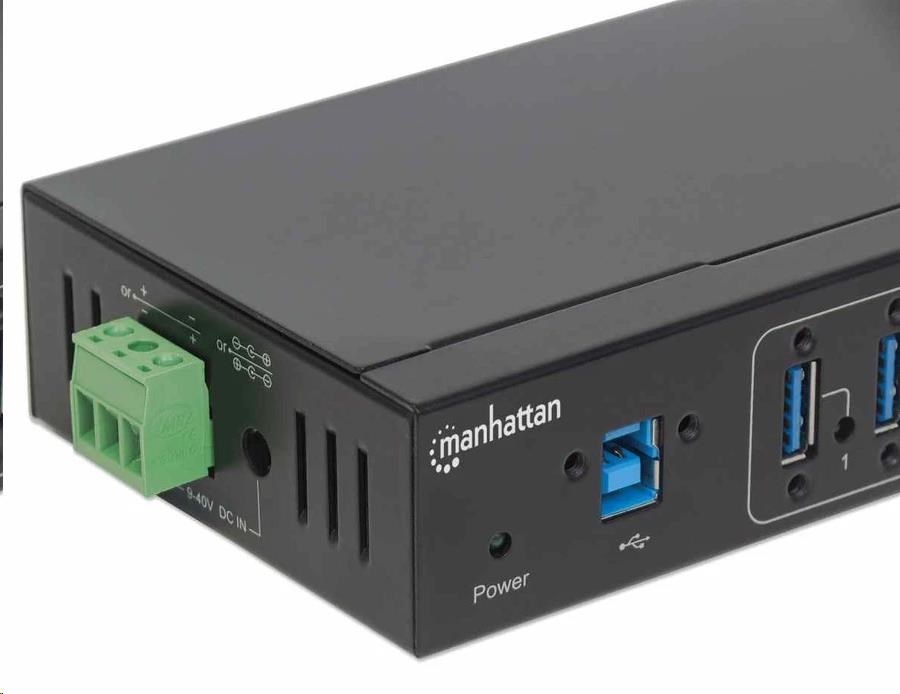

- AC, bus-powered and terminal-block power options with overcurrent and 20 kV ESD protection; does not support simultaneous use of terminal block and AC power
- Supports battery-charge specification 1.2 (BC 1.2)
- Backward compatible with all USB 2.0 and 1.1 devices
- Power and port-activation LED indicator
- Plug and Play
- Requires additional industrial power supply (not included)
- Three-year warranty
TECHNICAL SPECIFICATIONS
| Standards and Certifications | USB 3.0 FCC CE RoHS WEEE |

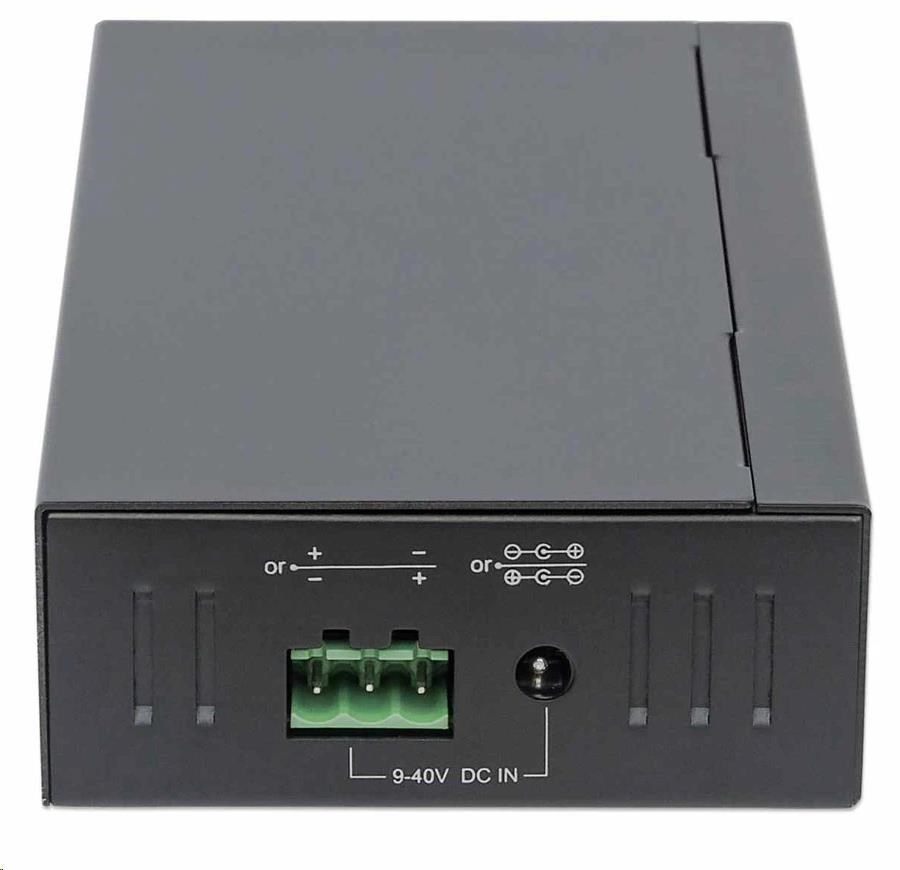

| Ports | Transfer speeds: 12 Mbps / 480 Mbps / 5 Gbps Seven USB 3.0 type A One USB 3.0 type B 9 – 40 reverse polarity VDC port: 5.5 x 2.1 x 9.5 mm 9 – 40 reverse polarity VDC port, three-pin terminal block |
| System Requirements | Does not support simultaneous use of terminal block and A/C power USB-enabled PC or Mac system Windows XP/Vista/7/8.1/10 or Mac OS 9 or above Available USB port 32 W power adapter (recommended; a higher-power adapter can also be used) |
| Package Contents | 7-Port Industrial USB 3.0 Hub USB cable One DIN-rail bracket Two wall-mount brackets 3-PIN Terminal Block Quick Instruction Guide |
| Physical | |
| Dimensions | 15.8 x 3.2 x 8 cm (6.22 x 1.26 x 3.15 in) |
| Weight | 0.33 kg (0.73 lbs.) |
| USB 3.0 type-A to type-B cable | 1 m (3 ft.); screw-lock connector |
| Housing | metal |
| LED power indicators | green |
| Operating Environment | |
| Operation Temperature | 0 – 40°C (32 – 104°F) |
| Storage Temperature | -20 – 60°C (-4 – 140°F) |
| Humidity (noncondensing) | 0 – 96% |
.
Druh IO zařízení:
USB hub nebo switch
Provedení:
Externí
Aktuální cena produktu je3491Kč
s dph
