MikroTik Cloud Router Switch CRS318-1Fi-15Fr-2S-OUT, 800MHz CPU, 256MB, 16x10/100 (PoE-in,1x out),2xSFP, vč.L5, venkovní
MikroTik Cloud Router Switch CRS318-1Fi-15Fr-2S-OUT - netPower 15FR

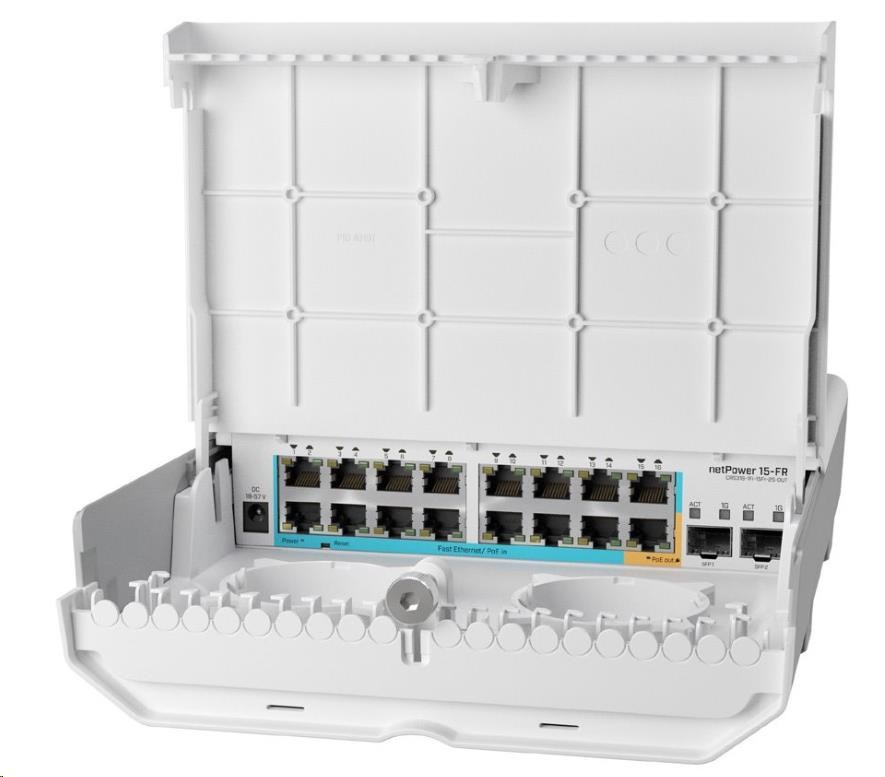

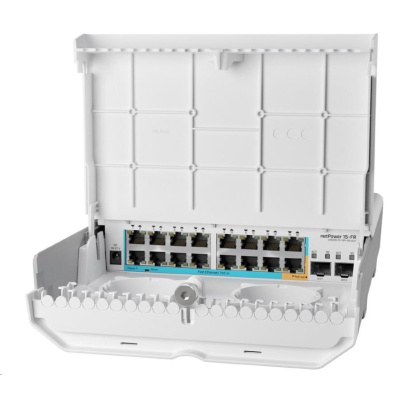

An outdoor 18 port switch with 15 reverse PoE ports and SFP
Cut costs, not speed – choose GPEN over GPON! With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
You don’t have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.
netPower 15FR – bringing the cost down and the speed up!

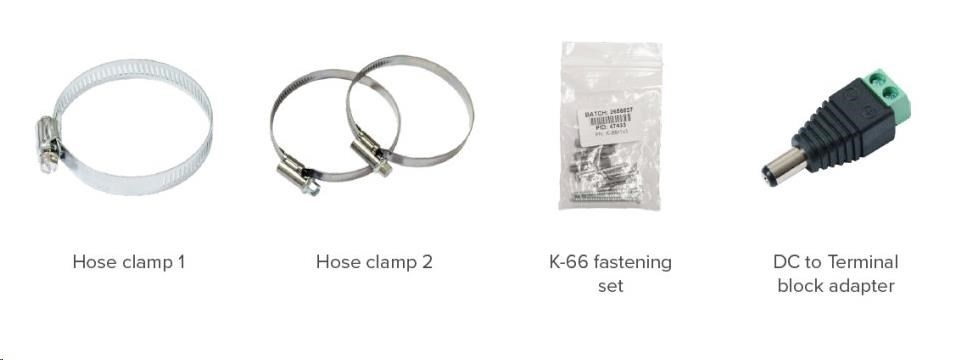

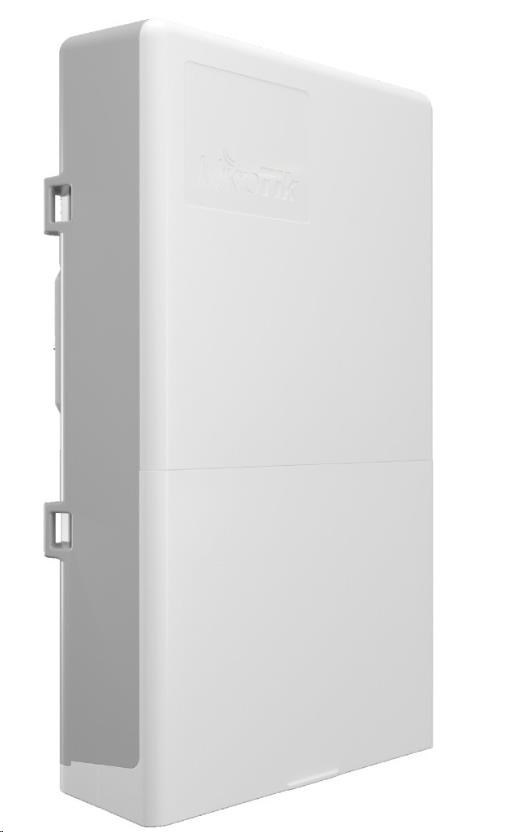

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps.
netPower 15FR has a non-blocking throughput of 3.6Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.
Provedení: Venkovní
Provozní teplota [°C]: -40 až 70
Hloubka [mm]: 304
Šířka [mm]: 212
Výška [mm]: 71
RAM [MB]: 256
CPU: 98DX224S
Frekvence CPU [MHz]: 800
Velikost interního uložiště [MB]: 16
Rychlosti LAN: (16) 10/100/1000Mbps
Rychlosti SFP/SFP+/QSFP+: 2x SFP (1000Mbps)
PoE-in : porty 1-14 a port 16
PoE-out - port 15
