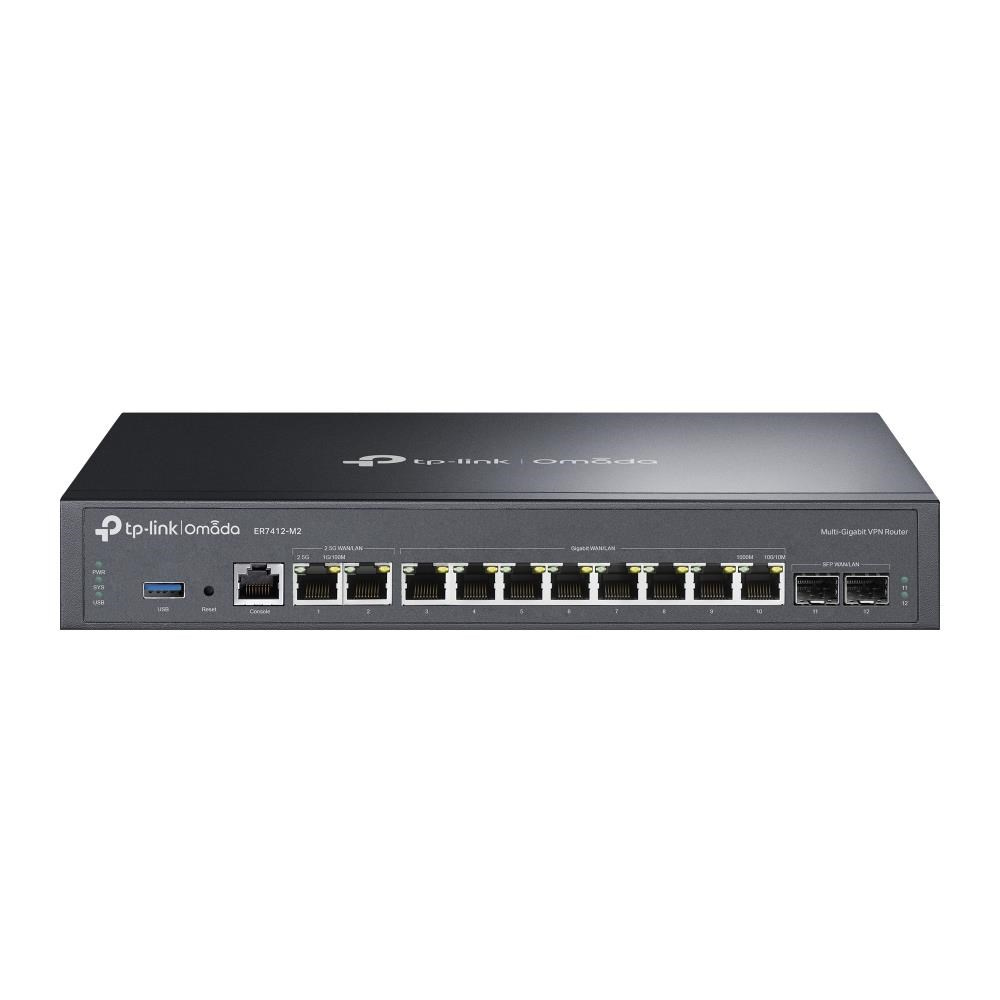

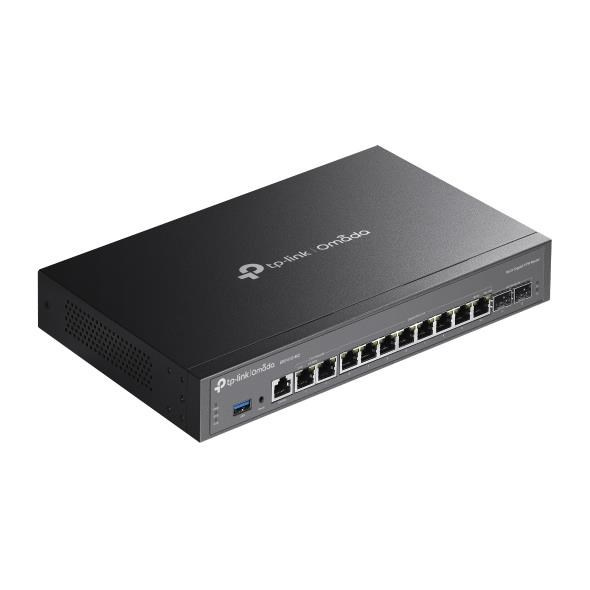

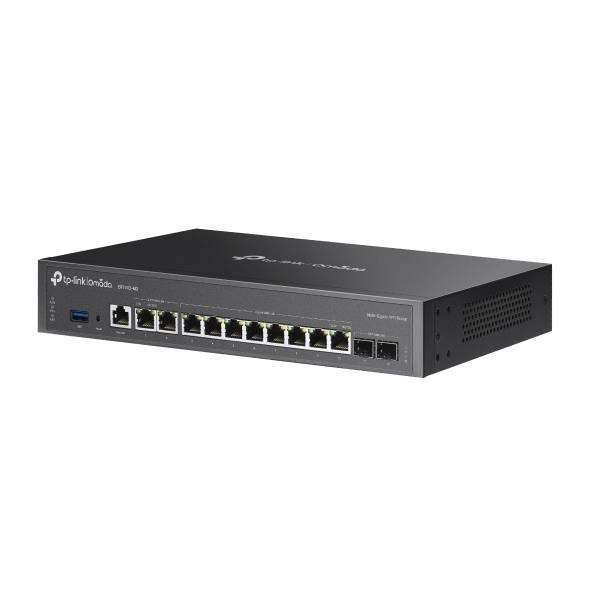

TP-Link ER7412-M2 OMADA VPN router (2xSFP WAN/LAN,2x2,5GbELAN/WAN,8xGbELAN,1xUSB3.0,fanless)

Funkce:Router, VPN; Počet portů LAN:10; Gigabit ethernet; USB port; Počet SFP portů:2; Další vlastnosti:Podpora IPv6, Firewall, Management, FTP server, VLAN.

Kód produktu324163
Part numberER7412-M2
EAN produktu4895252505184

Záruka:60 Měsíc(ů)
Výrobce:TP-link
Skladová dostupnost:Na dotaz
Běžná cena
9361 Kč
Vaše cena bez DPH
5951.24 Kč
Vaše cena včetně DPH
7201 Kč
Počet
ks
Dotaz na prodejce >






Přidat produkt k porovnání >Přidat produkt k oblíbeným >
Popis
Parametry
Hlídací pes

TP-Link ER7412-M2

Omada Multi-Gigabit VPN Router

  • Čtyřjádrový procesor @2.0GHz
  • 2× 2,5G RJ45 WAN/LAN porty
  • 10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)
  • 1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)
  • Až 11 WAN portů
  • Vysoce zabezpečené SSL/ IPSec / GRE§ / WireGuard / PPTP / L2TP VPN & OpenVPN
  • Centralizovaná správa cloudu přes web nebo aplikaci Omada
  • Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Více informací o Omada Cloud SDN>?

Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-router-wired-router/er7412-m2/

Technické specifikace


• 1× RJ45 Console Port
• 1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
SECURITY
Access Control • Source/Destination IP-Based ACL
• Stateful ACL
• IPv4/IPv6 ACL
• National Based ACL
Filtering • WEB Group Filtering§
• URL Filtering
• Web Security§
ARP Inspection • Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
Attack Defense • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
Interface • 1× 2.5G RJ45 WAN/LAN Port
• 1× 2.5G RJ45 WAN/LAN Port
• 2× Gigabit SFP WAN/LAN Ports
• 8× Gigabit RJ45 WAN/LAN Ports
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 100–240 VAC, 50/60 Hz
Flash 128MB NAND
DRAM 1 GB DDR4
Dimensions ( W x D x H ) 11.6×7.1×1.7 in (294×180×44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting • Desktop
• Rackmountable
Max Power Consumption 18.5W (With USB 3.0 connected)
PERFORMANCE
GRE • Unencrypted: 1153.0 Mbps
• Encrypted: 559.2 Mbps
WireGuard VPN 771.6 Mbps
Concurrent Session 1,000,000
New Sessions /Second 7
NAT (Static IP) 2345.71 Mbps / 2351.22 Mbps
NAT(DHCP) 2353.41 Mbps / 2353.40 Mbps
NAT(PPPoE) 2336.52 Mbps / 2336.08 Mbps
NAT (L2TP) 1937.53 Mbps / 1761.82 Mbps
NAT (PPTP) 1757.54 Mbps / 2011.33 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 1125.60 Mbps
• ESP-SHA256-AES256: 1133.1 Mbps
• ESP-SHA384-AES256: 1126.6 Mbps
• ESP-SHA512-AES256: 1132.8 Mbps
OpenVPN UDP: 266.2 Mbps
L2TP VPN Throughput • Unencrypted: 2724.5 Mbps
• Encrypted: 1018.4Mbps
PPTP VPN Throughput • Unencrypted: 3035 Mbps
• Encrypted: 534.6 Mbps
SSL VPN Throughput 263.1 Mbps
66 Byte Packet forwarding rate 1833 Mbps / 1835 Mbps
1,518 Byte Packet forwarding rate 2461 Mbps / 2461 Mbps
BASIC FUNCTIONS
WAN Connection Type • Static IP/Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address†
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FUNCTIONS
Advanced Routing • Static Routing
• Policy Routing
• RIP (available in Standalone Mode)
• OSPF (available in Standalone Mode)
Bandwidth Control IP/Port-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT • One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 80 Tunnels
IPsec VPN • 150 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (15)**
• 150 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (15)**
• 150 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (11)**
• 121 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
AUTHENTICATION
Web Authentication • No Authentication
• Simple Password*
• Hotspot (Local User/Voucher*/SMS*/Radius*)
• External Radius Server
• External Portal Server*
• LDAP
MANAGEMENT
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3*
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features • Automatic Device Discovery*
• Batch Configuration*
• Batch Firmware Upgrading*
• Intelligent Network Monitoring*
• Abnormal Event Warnings*
• Unified Configuration*
• Reboot Schedule*
OTHERS
Certification CE, FCC
Package Contents • ER7412-M2
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• RJ45 Console Cord
System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Environment • Operating Temperature: 0–45 ? (32–113 ?);
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% non-condensing

.
USB port: Ano
Gigabit ethernet: Ano
Další vlastnosti: Podpora IPv6
Další vlastnosti: VLAN
Další vlastnosti: Management
Další vlastnosti: FTP server
Další vlastnosti: Firewall
Funkce: VPN
Funkce: Router
Počet portů LAN: 10
Počet SFP portů: 2
