TP-Link OMADA switch ES220GMP (16xGbE,2xGbE/SFPcombo,16xPoE+,250W)
Popis
Parametry
Hlídací pes

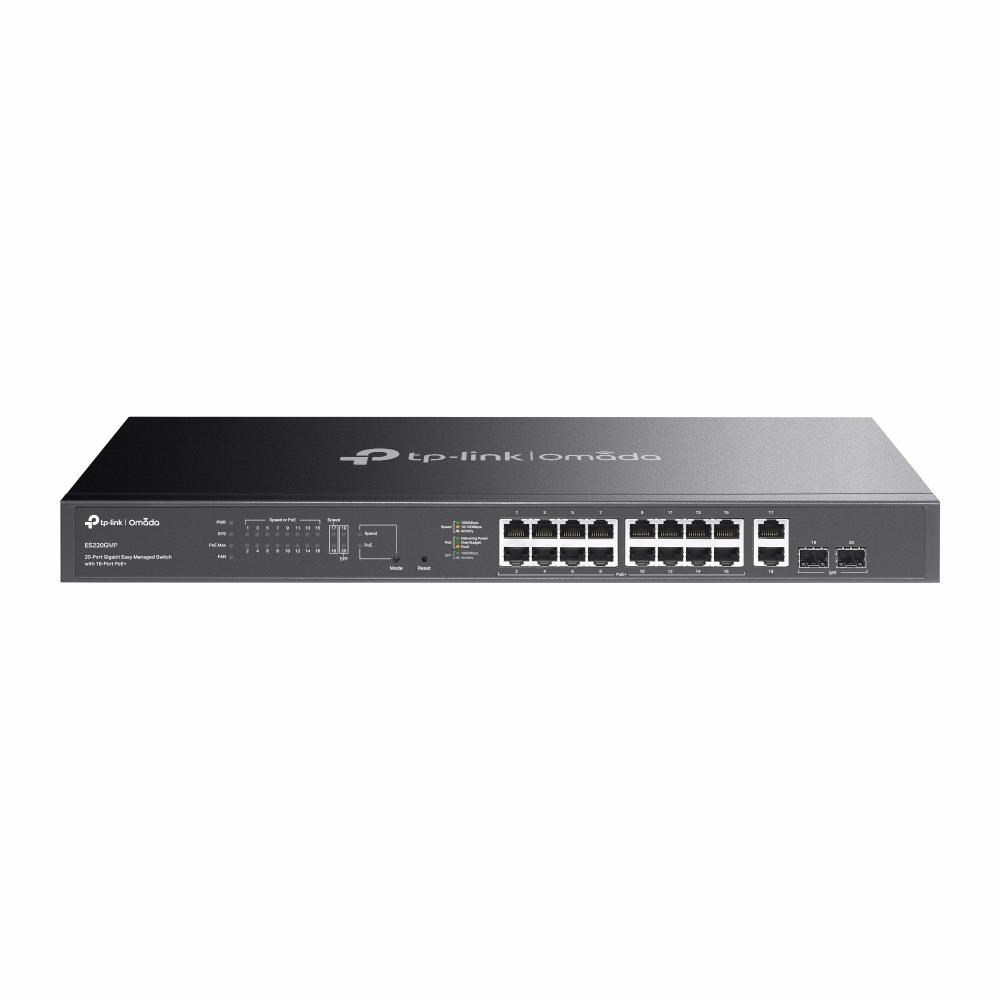

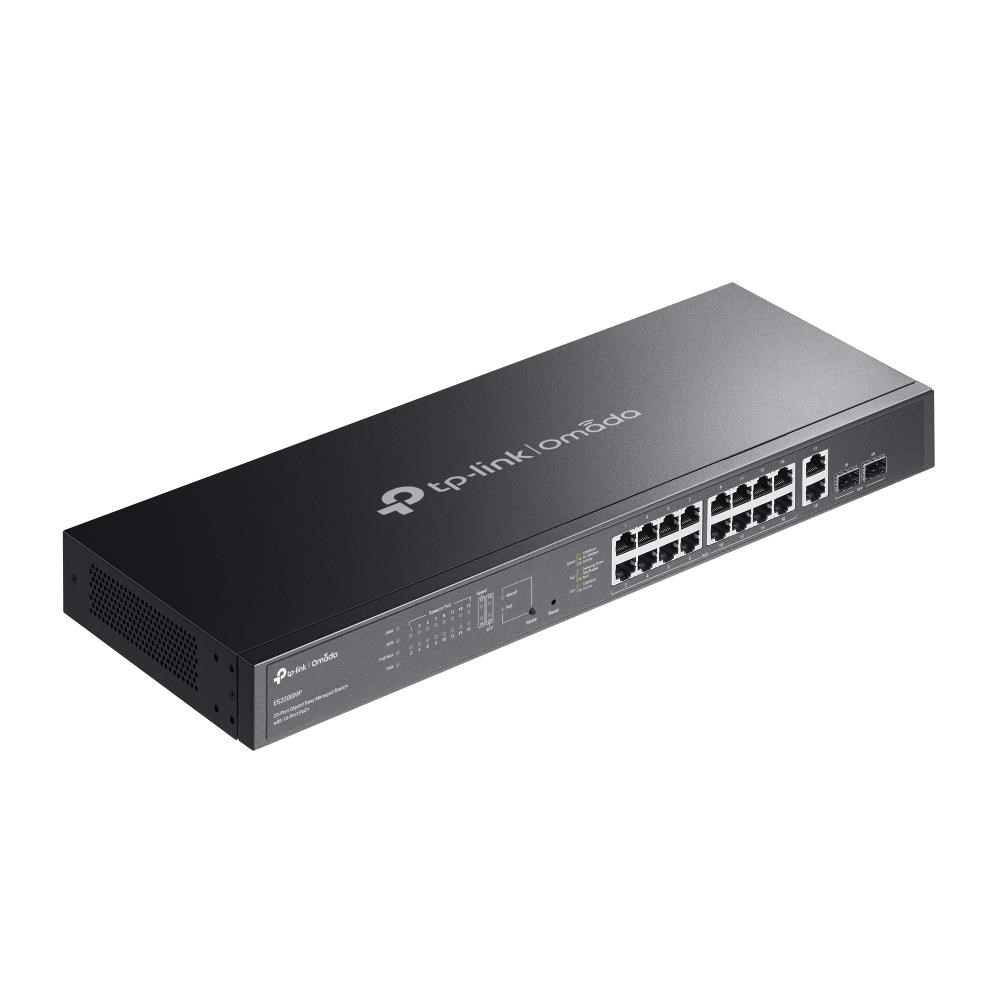

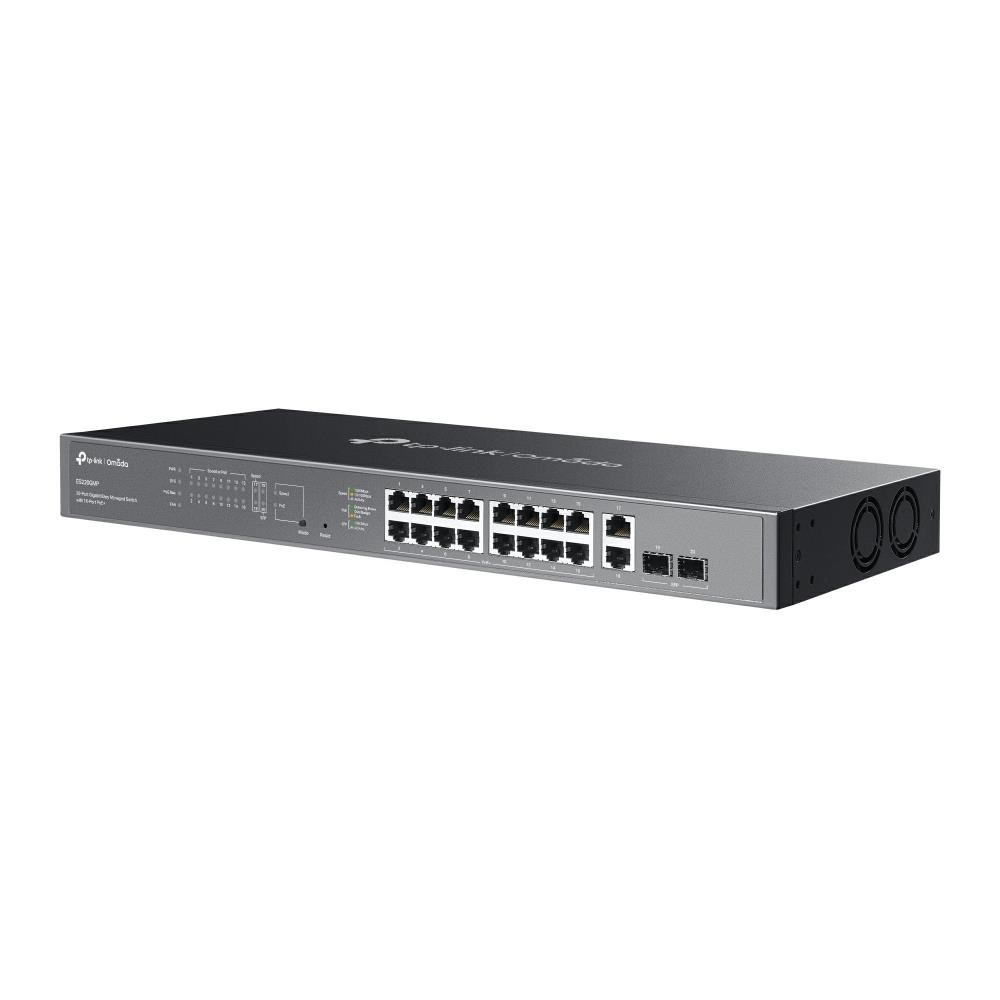

TP-Link OMADA switch ES220GMP
Omada 20portový gigabitový Easy Managed switch s 16 porty PoE+
- 16× gigabitové PoE+ RJ45 porty kompatibilní s 802.3at/af
- 2× gigabitový RJ45 port, 2× gigabitový SFP/RJ45 combo port
- Rozpočet PoE napájení 250 W, až 30 W pro každý PoE port
- Snadné použití: Podporuje plug-and-play pro okamžité připojení a jednoduchou konfiguraci pro další funkce
- Centralizovaná cloudová správa přes web nebo aplikaci Omada
- Až 250 m PoE, QoS, automatické obnovení PoE a izolace portů pro spolehlivou síť v dohledových systémech
- Automatická prevence smyček, VLAN a IGMP Snooping
- Odolné kovové pouzdro a možnost montáže na stůl nebo zeď
Learn more about TP-Link PoE technology >
Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-easy-managed/es220gmp/
Technické specifikace
| HARDWARE FEATURES | |
| Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | Rackmountable |
| Physical Security Lock | ? |
| Power Supply | 100–240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
| Surge Protection | ±6kV |
| PERFORMANCE | |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
| Transmission Method | Store-And-Forward |
| MANAGEMENT | |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • ES220GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
| Environment | • Operating Temperature: -5?~50? (23?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Technologie:
Gigabit ethernet + Gigabit optika
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Web
Provedení:
Rack mounted 19"
Funkce:
PoE (Power over ethernet)
Funkce:
QoS (Quality of service)
Funkce:
VLAN (virtual local area network)
Funkce:
DHCP snooping
Funkce:
L2
Funkce:
Web management/Smart switch
Podporované standardy PoE:
802.3af
Podporované standardy PoE:
802.3at
Ventilátor:
Ano
Počet portů LAN:
16
Maximální počet portů:
18
Počet portů Combo:
2
Počet SFP portů:
2
PoE budget (W):
250
Počet PoE+ portů:
16
Aktuální cena produktu je6101Kč
s dph
